384x512 VOx Thermal Imaging Core for Raspberry Pi
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS、ISO9001、CE |
| Model Number: | SNS21852-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type:: | Raspberry PI Camera Module | Sensor:: | SNOY IMX662 |
|---|---|---|---|
| Resolution:: | 1920*1080 | Dimensions:: | 38mmx38mm (compatible With 32mmx32mm) |
| Highlight: | VOx thermal imaging core,Raspberry Pi thermal camera,384x512 thermal imaging module |
||
Product Description
| Type: | Raspberry PI Camera Module |
| Sensor: | SNOY IMX662 |
| Resolution: | 1920*1080 |
| Dimensions: | 38mmx38mm (compatible With 32mmx32mm) |

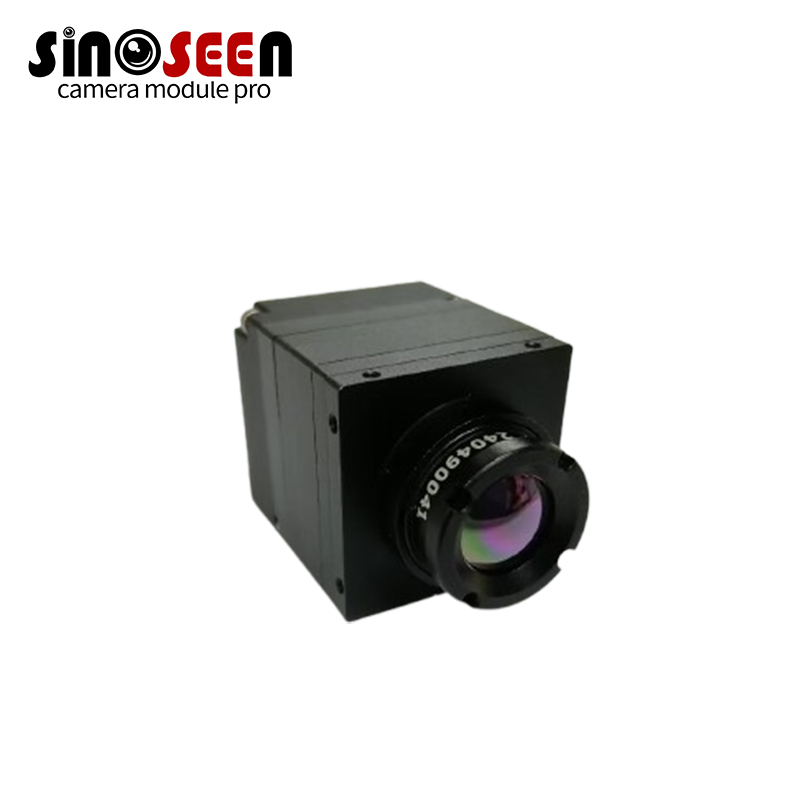

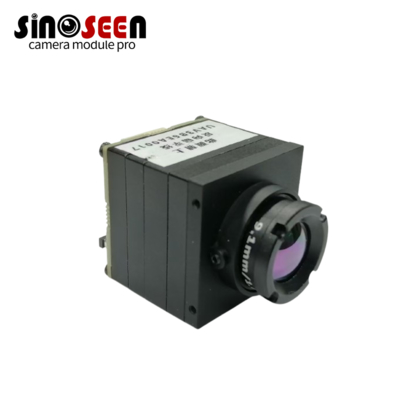

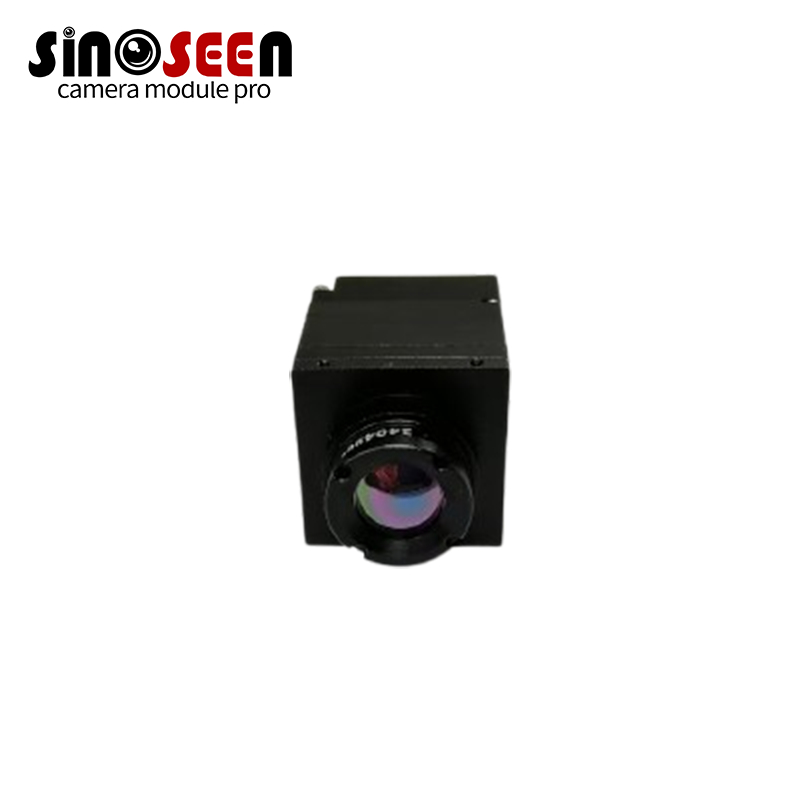

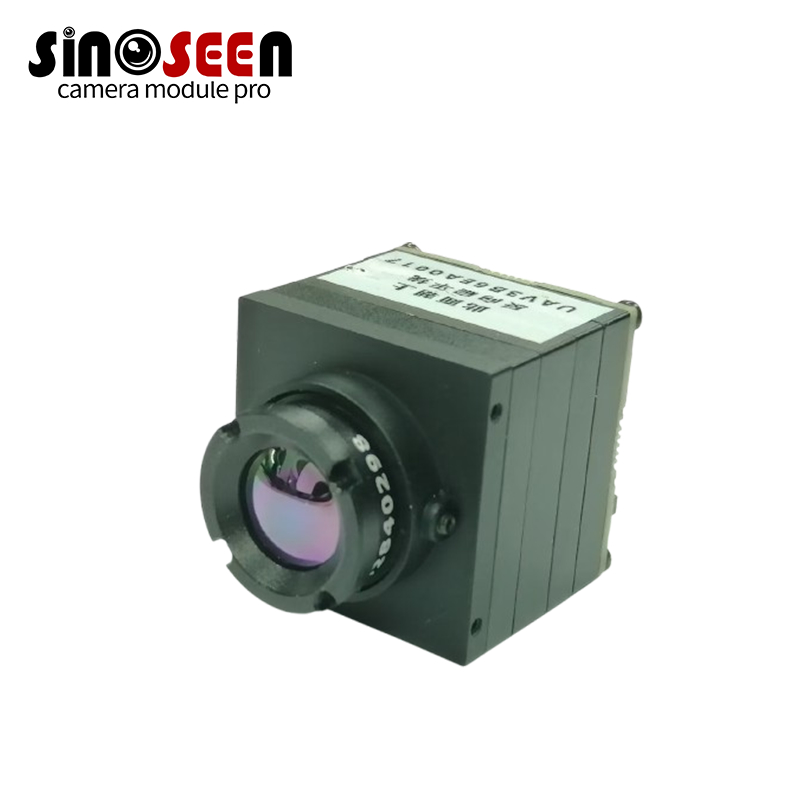

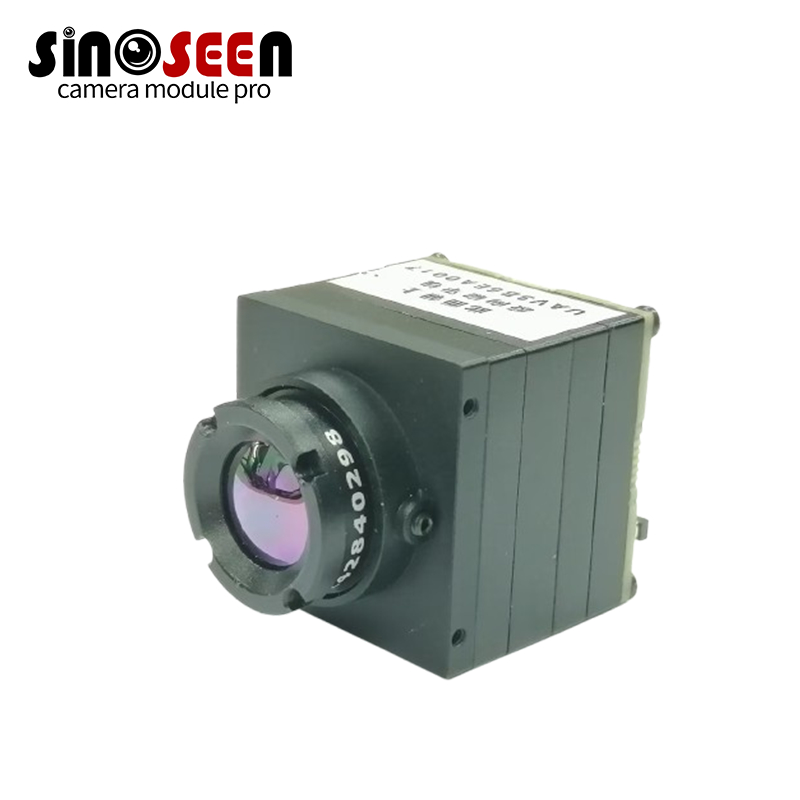

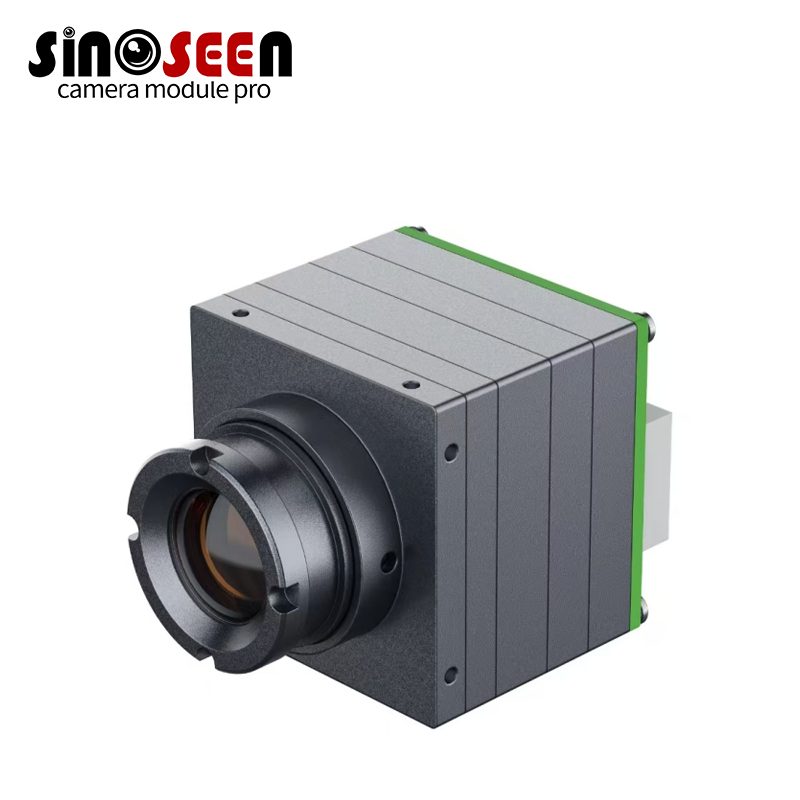

384x512 VOx Uncooled Thermal Imaging Core for Industrial Applications
This high-performance thermal imaging core features a 384x512 resolution VOx infrared detector, providing exceptional clarity and sensitivity in thermal imaging. With a compact form factor of 26×26×21.1mm and weighing under 23g, it is ideal for integration into space-constrained applications.
- 384x512 VOx sensor with ≤40mK NETD
- 9.1mm lens, 50Hz frame rate
- Compact (26×26×21.1mm), ≤1W power consumption
- Multiple imaging modes: white-hot, color palettes
- Designed for drones, surveillance, night vision & industrial automation
| IR Detector | Resolution: 640x512 |
|---|---|
| Spectral range | 8~14μm |
| Detector type | VOx |
| Pitch pitch | 12μm |
| NETD | ≤40mK |
| Lens | 9.1mm |
| Frame rate | ≤50Hz |
| Image adjustment | Bright or Contrast adjustment: Auto or manual |
| Polarity | White Hot or Black Hot |
| Color palettes | Iron, Iron invert, Rainbow, Feather |
| E-zoom | X1,X2,X4 |
| Image processing | NUC, digital filter noise reduction, digital details enhanced |
| Image mirror | Left and right, Up and down |
| Power input | DC 5~12V |
| Power consumption | ≤ 1W |
| Video output | CVBS |
| Communication port | RS232 |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5～95%, non-condensing |
| Vibration | 6.06g, all axial for random vibration |
| Shock | 40g, 4ms, rear peak sawtooth wave at 3 axes of 6 directions |
| Dimension | 26×26×21.1mm (without lens and connectors) |
| Weight | ≤23g (without lens and connectors) |
We provide OEM/ODM support for customized thermal cores, from lens configurations to image processing adaptations tailored to your product environment.
Sinoseen is a leading camera module manufacturer providing custom imaging solutions since 2016. With one-stop services from design to manufacturing, we serve diverse sectors including industrial automation, security, automotive, and smart devices.
Need custom thermal cores or integration support? Contact our team or email us at andy@sinoseen.com for consultation.
