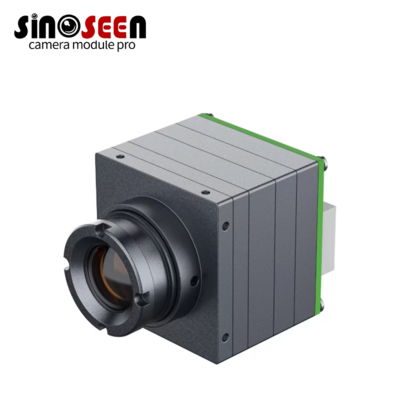

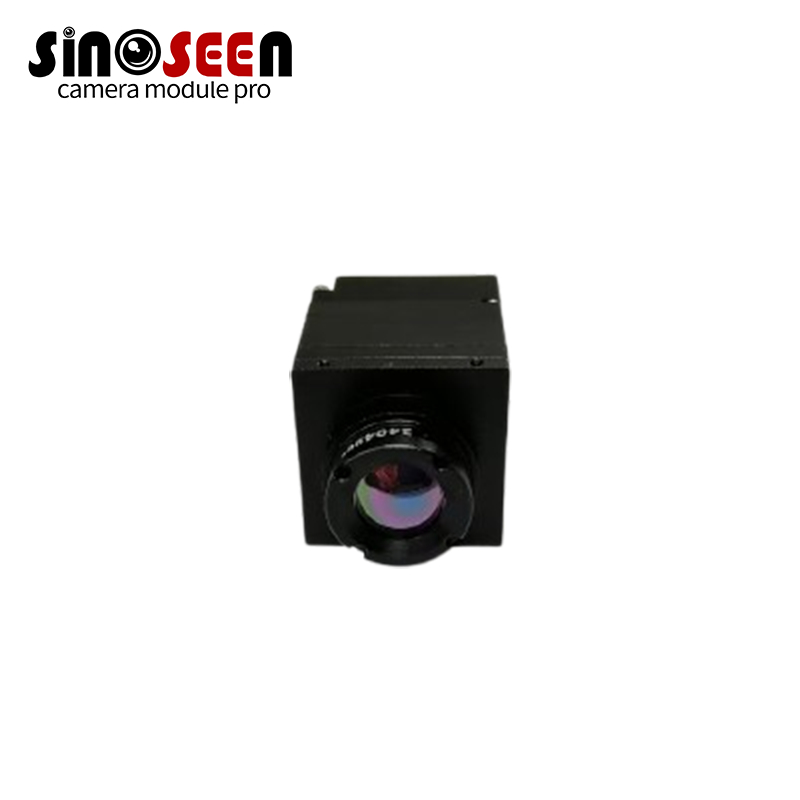

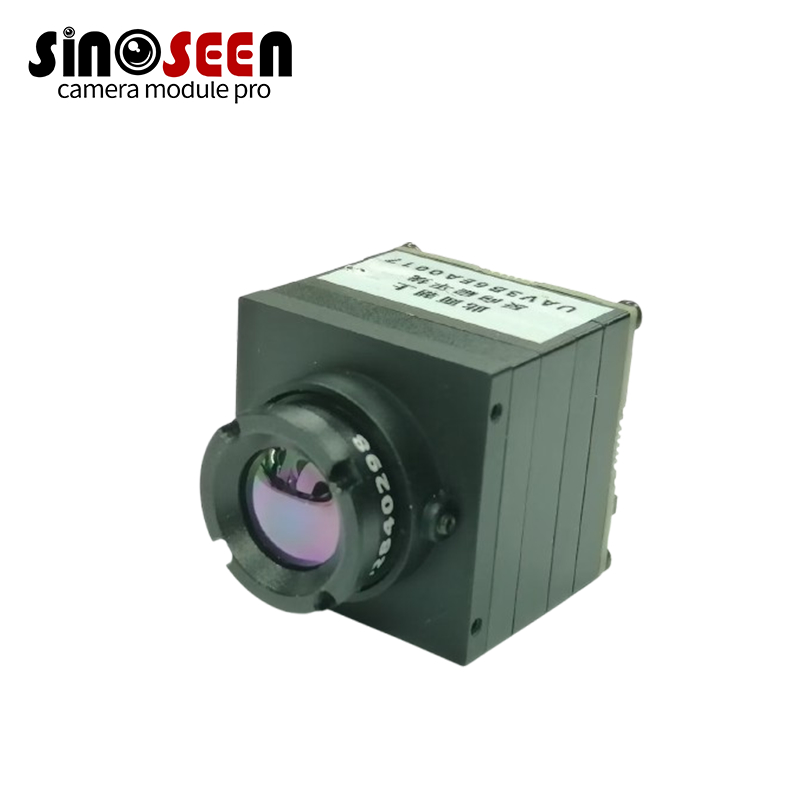

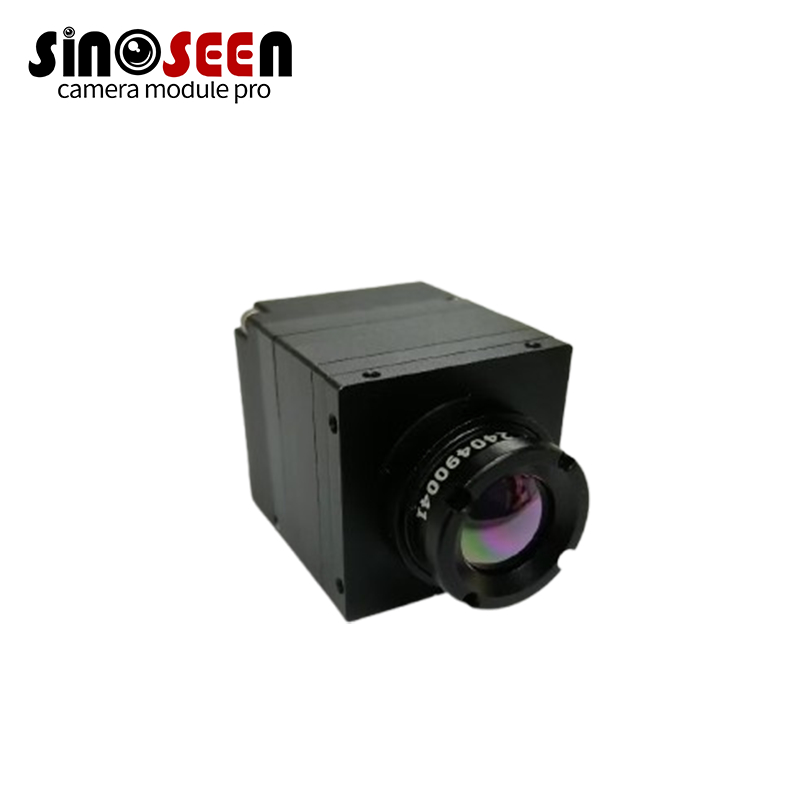

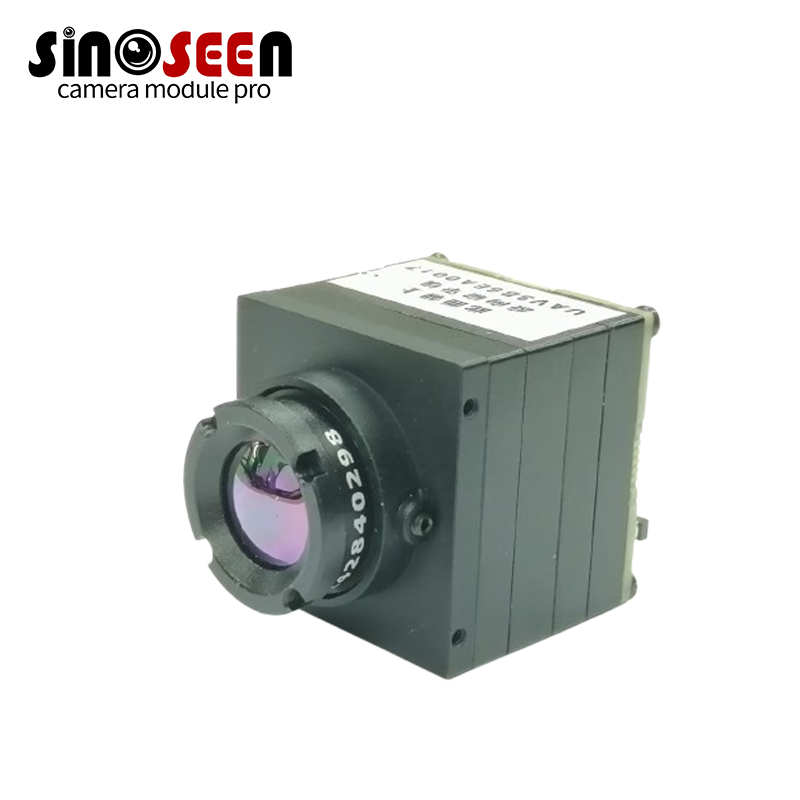

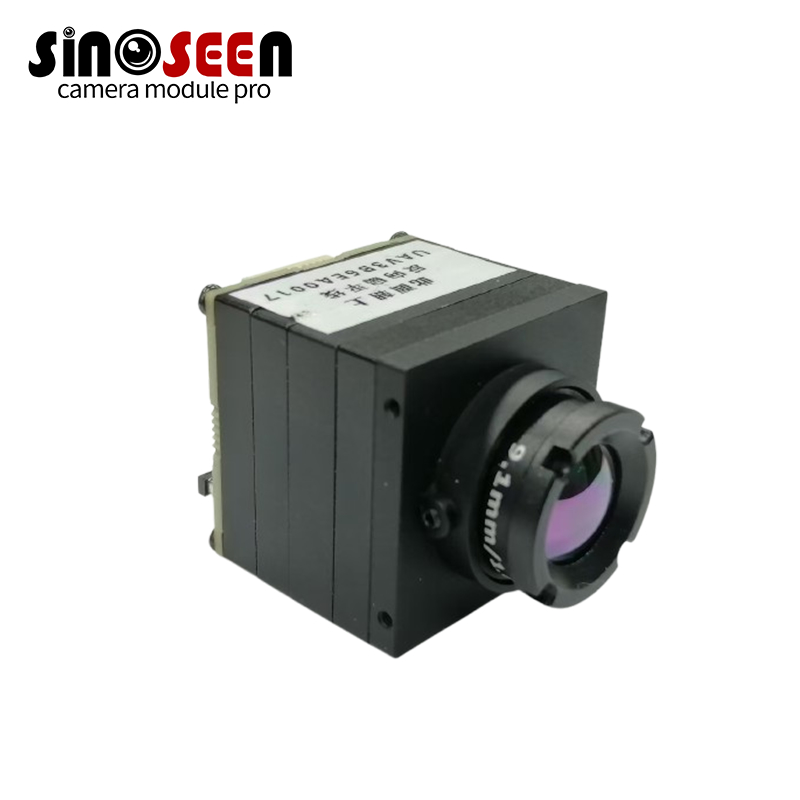

Uncooled Thermal Imaging Core 384x288 VOx Detector for Industrial Use
Product Details:
| Place of Origin: | china |
| Brand Name: | sinoseen |
| Certification: | ce,iso,rohs |
| Model Number: | XLS-thermal-384 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Highlight: | Uncooled thermal imaging core,384x512 VOx detector,Industrial thermal imaging module |
||
|---|---|---|---|
Product Description
Compact Uncooled Thermal Imaging Core - Tailored for Drones, Vehicles, and Industry 4.0
Engineered for modern high-performance systems, this 384x288 uncooled thermal imaging core features a VOx infrared detector with a fine pixel pitch of 12μm. Its low NETD (≤40mK) and high-speed frame output ensure crisp thermal imagery and real-time observation, even in rapidly changing environments.
Ideal for integration into automotive night vision, UAV thermal surveillance, or industrial temperature monitoring, this core features advanced image processing capabilities and multiple display modes. Its low power design (≤1W) and compact size ensure seamless integration.
- Precise imaging with ≤40mK sensitivity
- Multi-mode output: Iron Red, Rainbow, White/Black Hot
- Small and rugged - perfect for mobile/embedded use
- CVBS video out, RS232 control
- Reliability across -20°C to +60°C operation
| IR Detector | Resolution: 384x288 |
|---|---|
| Spectral range | 8~14μm |
| Detector type | VOx |
| Pixel pitch | 12μm |
| NETD | ≤40mK |
| Lens | 9.1mm |
| Frame rate | ≤50Hz |
| Image adjustment | Bright or Contrast adjustment: Auto or manual |
| Polarity | White Hot or Black Hot |
| Color palettes | Iron, Iron invert, Rainbow, Feather |
| E-zoom | X1,X2,X4 |
| Image processing | NUC, digital filter noise reduction, digital details enhanced |
| Image mirror | Left and right, Up and down |
| Power | Overcurrent protection, overvoltage protection, reverse input protection |
| Power input | DC 5~12V |
| Power consumption | ≤ 1W |
| Video output | CVBS |
| Communication port | RS232 |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5～95%, non-condensing |
| Vibration | 6.06g, all axial for random vibration |
| Shock | 40g, 4ms, rear peak sawtooth wave at 3 axes of 6 directions |
| Dimension | 26×26×21.1mm (without lens and connectors) |
| Weight | ≤23g (without lens and connectors) |
We tailor solutions to your system—adjust frame rates, interfaces, optics, or calibration as needed. Fast prototyping and scalable production supported.
Sinoseen delivers industrial-grade imaging modules, combining innovation with manufacturing scale. Trusted by top-tier clients in AI vision, security, and OEM devices.
Explore integration possibilities with us. Contact andy@sinoseen.com for thermal module solutions.
