640x512 VOx Uncooled Infrared Camera Module 50Hz
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS、ISO9001、CE |
| Model Number: | XLS-theraml-640 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Highlight: | 640x512 VOx uncooled infrared detector,50Hz infrared camera module,OEM VOx detector module |
||
|---|---|---|---|
Product Description

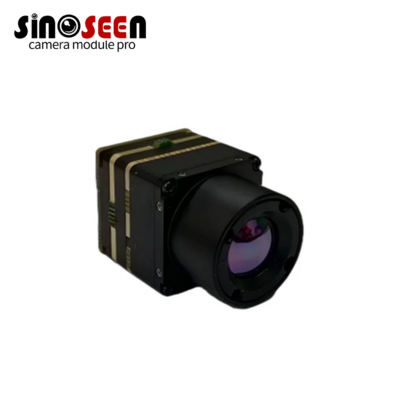

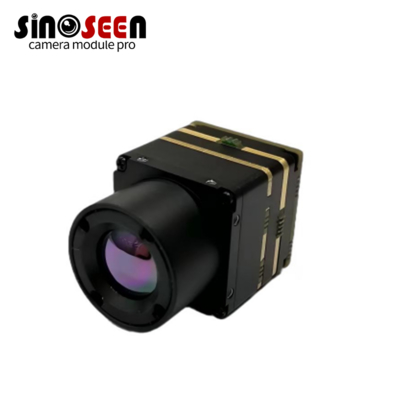

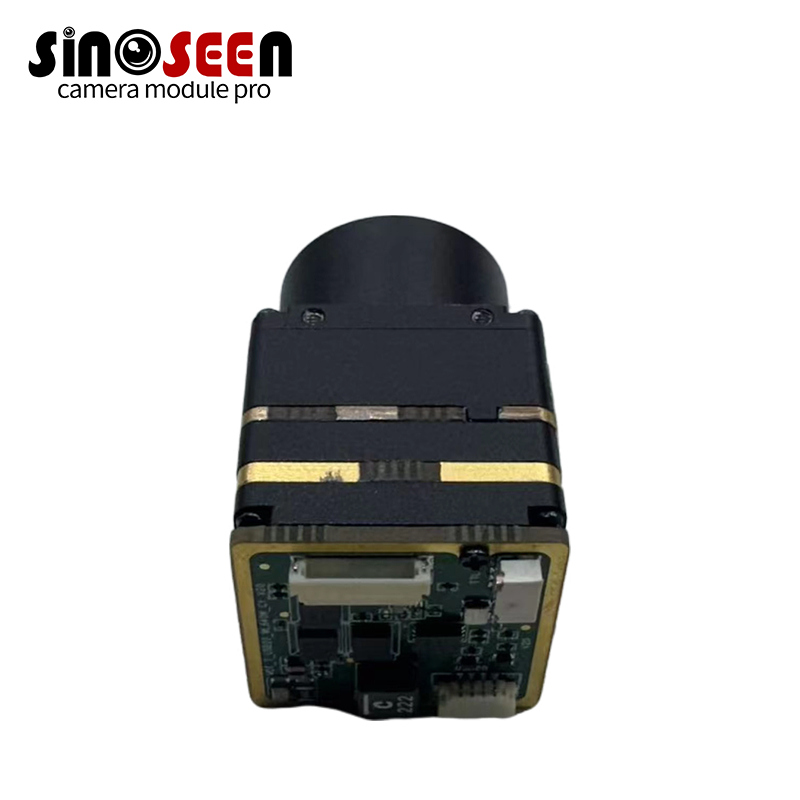

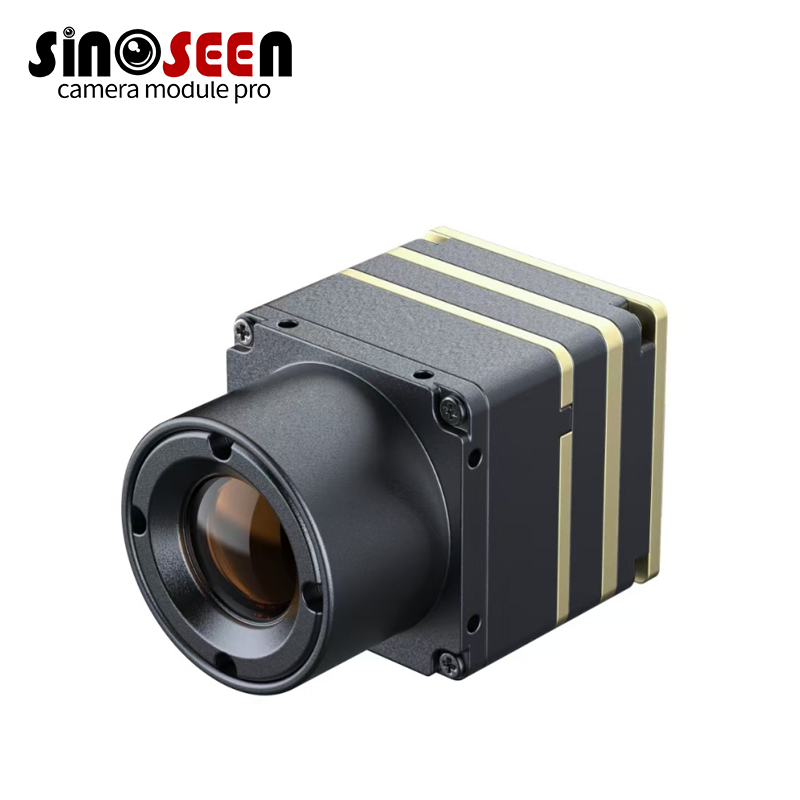

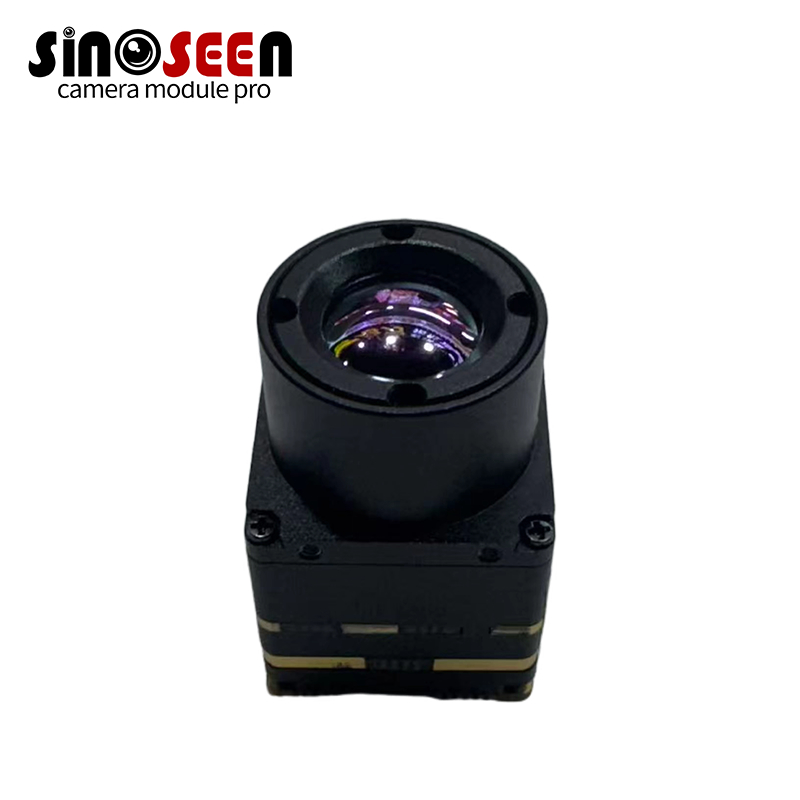

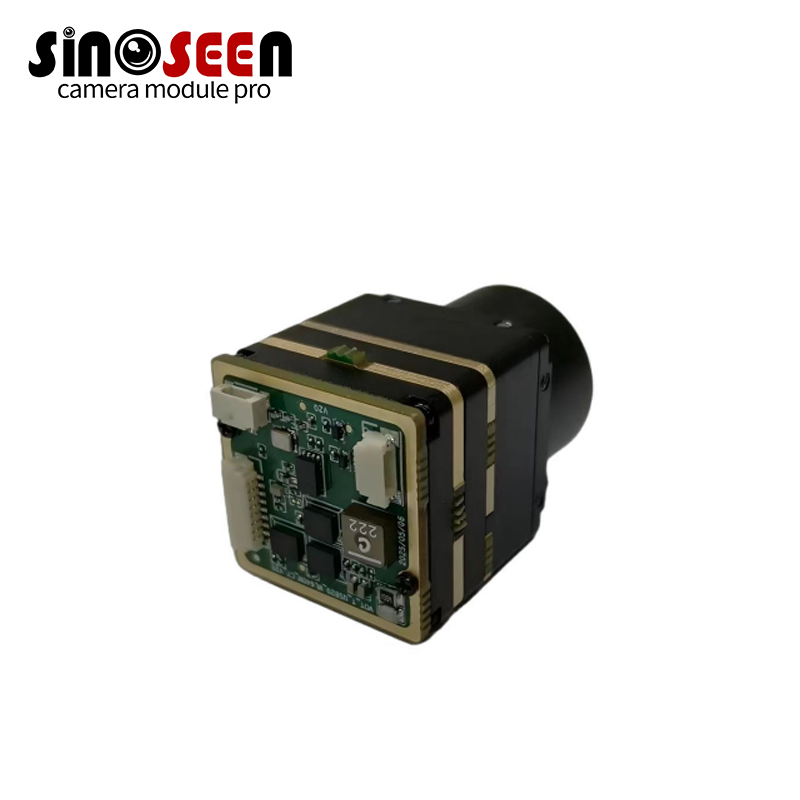

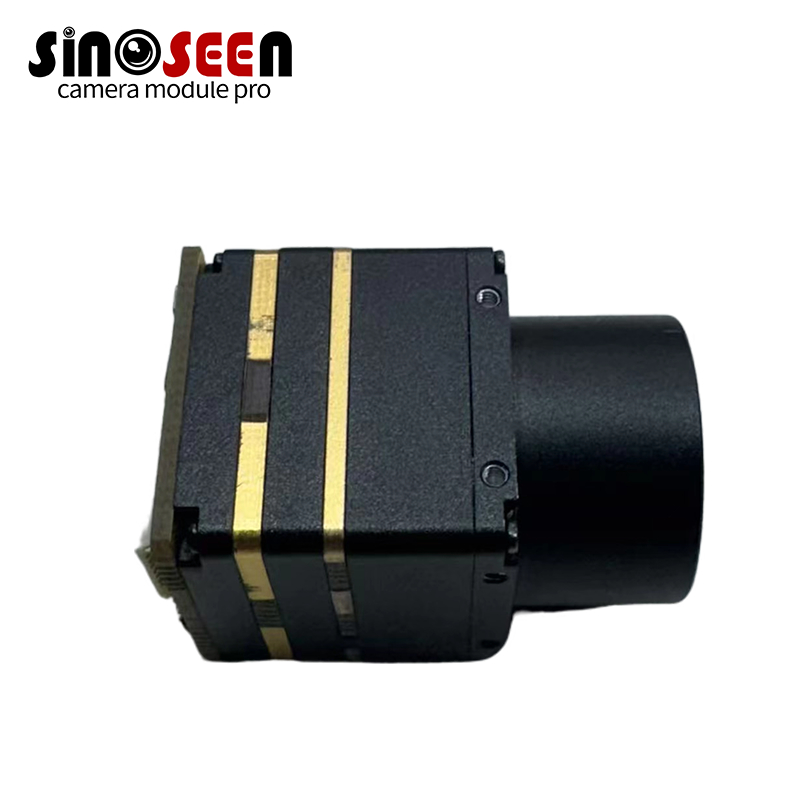

High-Performance and Lightweight 640x512 VOx Uncooled Infrared Detector OEM Camera Module for Precise Temperature Detection
This high-performance thermal imaging camera module features a 640x512 resolution VOx uncooled infrared detector, delivering crisp and high-definition thermal images. With advanced image processing algorithms such as non-uniformity correction (NUC), digital noise reduction, and digital detail enhancement, it offers exceptional imaging clarity and precision.
Its ultra-low NETD (≤40mK) ensures outstanding thermal sensitivity, enabling detection of even subtle temperature differences. Combined with a fast frame rate of up to 50Hz and 9.1mm lens, this module excels in capturing fast-moving targets. Brightness, contrast, and polarity settings are all customizable for tailored imaging.
Engineered for integration, this compact module (21x21x33.9mm, 24.5g) consumes just ≤0.85W and supports USB video output and UART TTL/USB communication, making it ideal for professional embedded systems. Multiple color palettes including Iron, Rainbow, and Feather enhance visual interpretation in various applications.
- High-resolution 640x512 VOx detector
- ≤40mK NETD for precise temperature detection
- High frame rate up to 50Hz
- Advanced image enhancement: NUC, DNR, detail boost
- Compact, lightweight, ultra-low power
- Supports USB and TTL/UART
| IR Detector | Resolution | 640x512 |
|---|---|---|
| Spectral range | 8~14μm | |
| Detector type | VOx | |
| Pixel pitch | 12μm | |
| NETD | ≤40mK | |
| Lens | 9.1mm | |
| Frame rate | ≤50Hz | |
| Image adjustment | Brightness/Contrast adjustment | Auto or manual |
| Polarity | White Hot or Black Hot | |
| Color palettes | Iron, Iron invert, Rainbow, Feather | |
| E-zoom | X1, X2, X4 | |
| Image adjustment | Image processing | NUC, digital filter noise reduction, digital details enhanced |
| Image mirror | Left and right, Up and down | |
| Output resolution | 640X512 | |
| Power | Power protection | Overcurrent protection, overvoltage protection, reverse input protection |
| Power input | DC5V | |
| Power consumption | ≤0.85W | |
| Common | Video output | USB |
| Communication port | UART TTL/USB | |
| Operating Temperature | -20℃~+60℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Dimension | 21×21×33.9mm (with 9.1mm Lens) | |
| Weight | 24.5g (with 9.1mm Lens) |
Applications: Drones, AI vision systems, Industry 4.0, vehicle night vision, and smart security systems
Customization Services Available: We offer customized lens, housing, interface, and firmware development services to meet your specific product integration needs.
