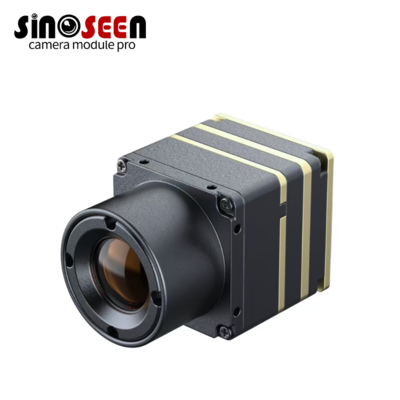

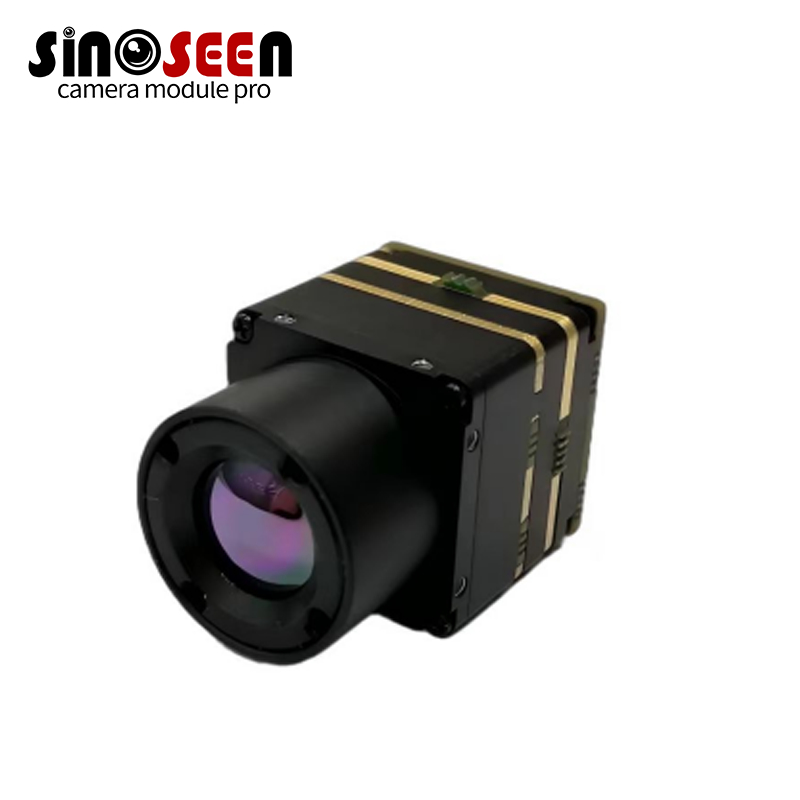

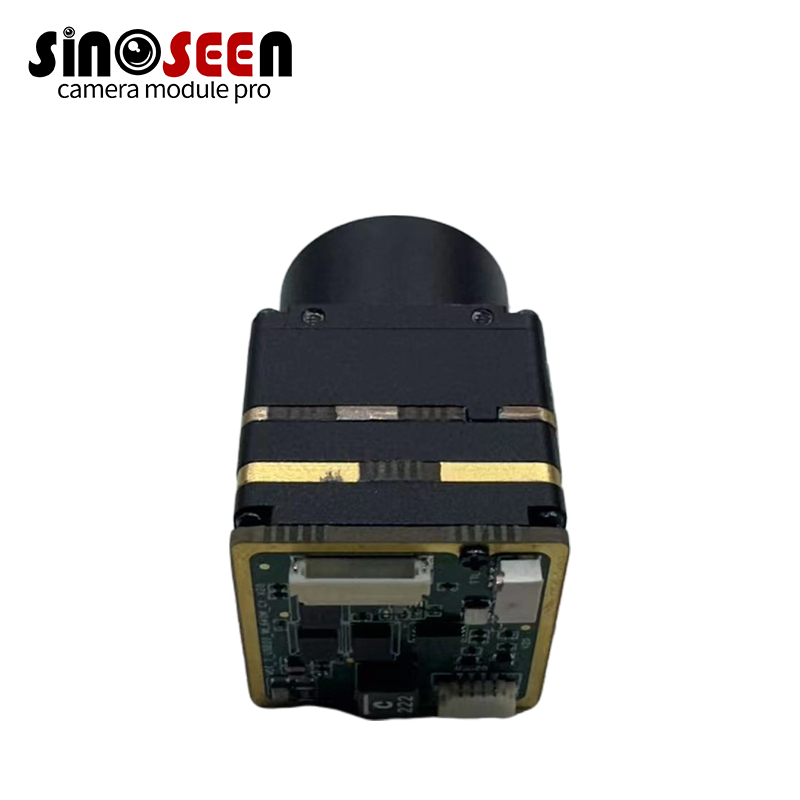

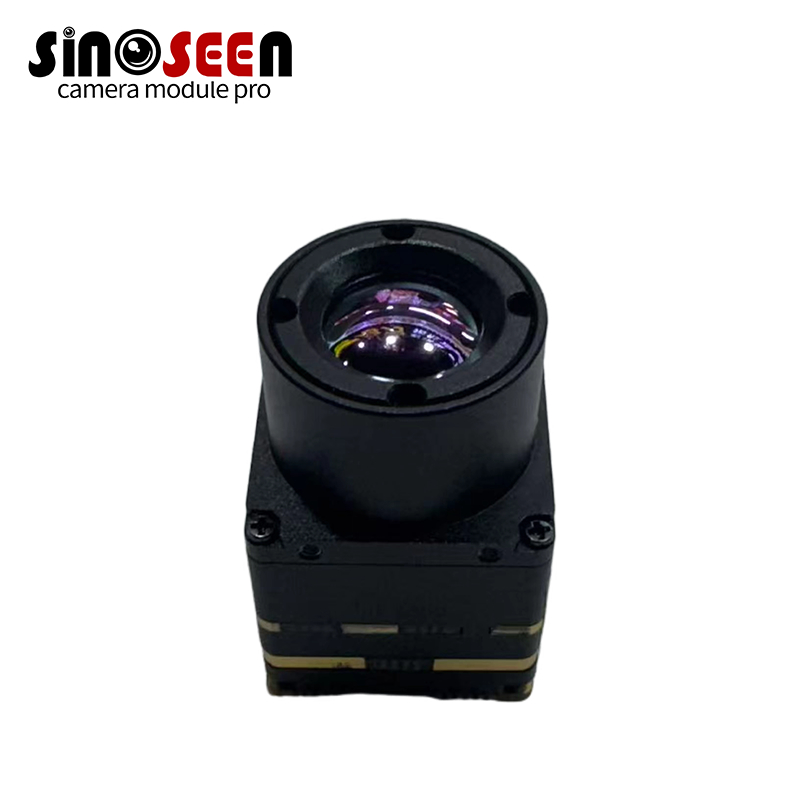

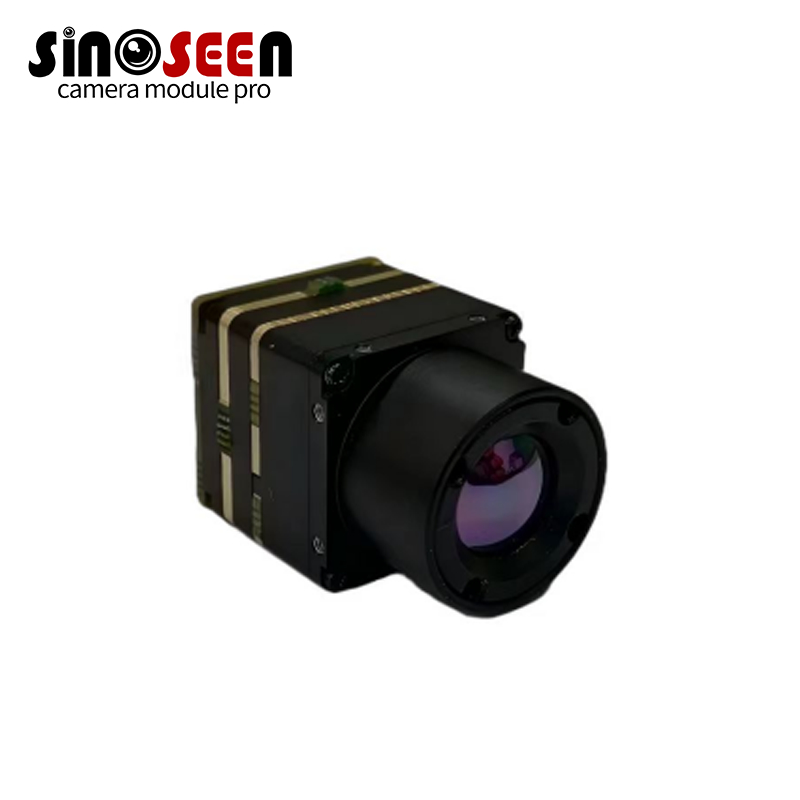

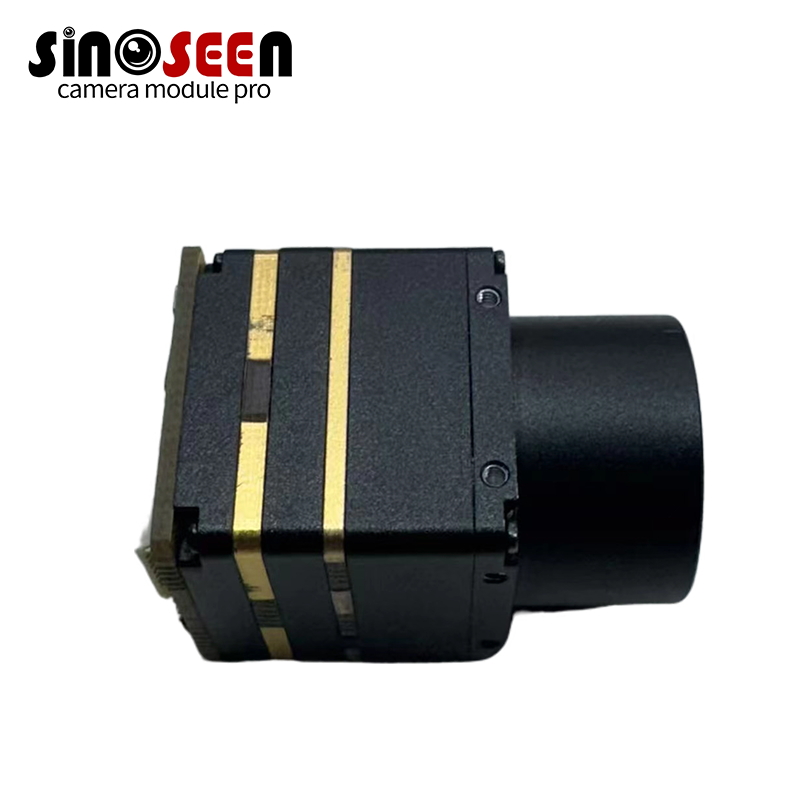

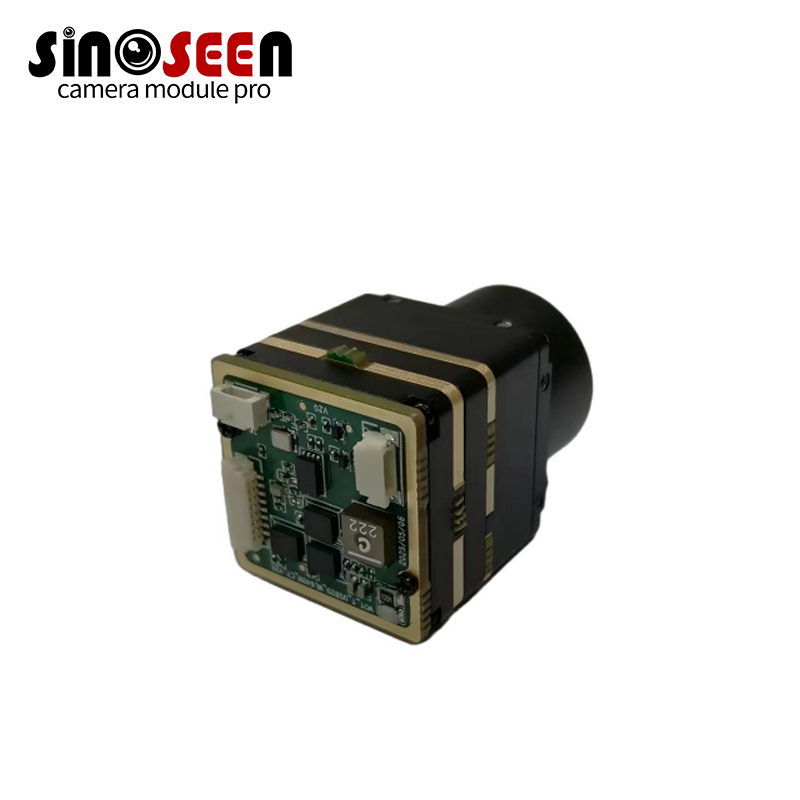

640x512 VOx Thermal Imaging Camera Module for Industrial Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS、ISO9001、CE |
| Model Number: | XLS-theraml-640 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Highlight: | 640x512 VOx thermal camera module,industrial thermal imaging module,OEM thermal camera with warranty |
||
|---|---|---|---|
Product Description
Real-Time Imaging and Digital Zoom High-Performance OEM Camera Modules for Industrial Equipment
This thermal imaging module is designed to meet the needs of real-world embedded thermal applications. Featuring a 640x512 VOx infrared detector and low NETD (≤40mK), it captures precise temperature differences across a wide operating spectrum of 8-14μm.
The compact design (21x21x33.9mm), light weight (24.5g), and low power draw (≤0.85W) make it ideal for space- and energy-constrained systems. With USB video output and UART/TTL interface, integration is seamless across platforms.
Ideal Applications
- Drone-based thermal inspection
- Vehicle night vision systems
- Smart surveillance & border security
- Industrial equipment thermal monitoring
- Handheld or wearable IR devices
Multiple image display modes (White Hot, Black Hot, Rainbow) and digital zoom (x1, x2, x4) allow customization to any operational environment. Noise filtering, mirror flip, and NUC capabilities ensure reliable, real-time imaging.
Key Advantages
- High-performance VOx sensor
- Smooth image output with rich detail
- Compact integration-ready form factor
- Built-in protections: overcurrent, overvoltage, reverse polarity
Technical Specifications
| IR Detector | Resolution: 640x512 |
|---|---|
| Spectral Range | 8~14μm |
| Detector Type | VOx |
| Pixel Pitch | 12μm |
| NETD | ≤40mK |
| Lens | 9.1mm |
| Frame Rate | ≤50Hz |
| Image Adjustment | Brightness/Contrast adjustment: Auto or manual Polarity: White Hot or Black Hot Color palettes: Iron, Iron invert, Rainbow, Feather |
| E-Zoom | X1, X2, X4 |
| Image Processing | NUC, digital filter noise reduction, digital details enhanced Image mirror: Left and right, Up and down |
| Output Resolution | 640×512 |
| Power | Overcurrent protection, overvoltage protection, reverse input protection Power input: DC5V Power consumption: ≤0.85W |
| Common | Video output: USB Communication port: UART TTL/USB Operating Temperature: -20℃~+60℃ Storage Temperature: -45℃~+85℃ Dimension: 21×21×33.9mm (with 9.1mm Lens) Weight: 24.5g (with 9.1mm Lens) |
Customization Services Available
We provide personalized support for lens adjustment, custom firmware, and interface options.
About Sinoseen
With years of experience in infrared and visible light camera solutions, Sinoseen serves industries with stable, high-quality OEM/ODM modules.
Contact Us
For pricing, integration guidance, or custom solution inquiries, please contact us:
Email: andy@sinoseen.com
Want to Know more details about this product
