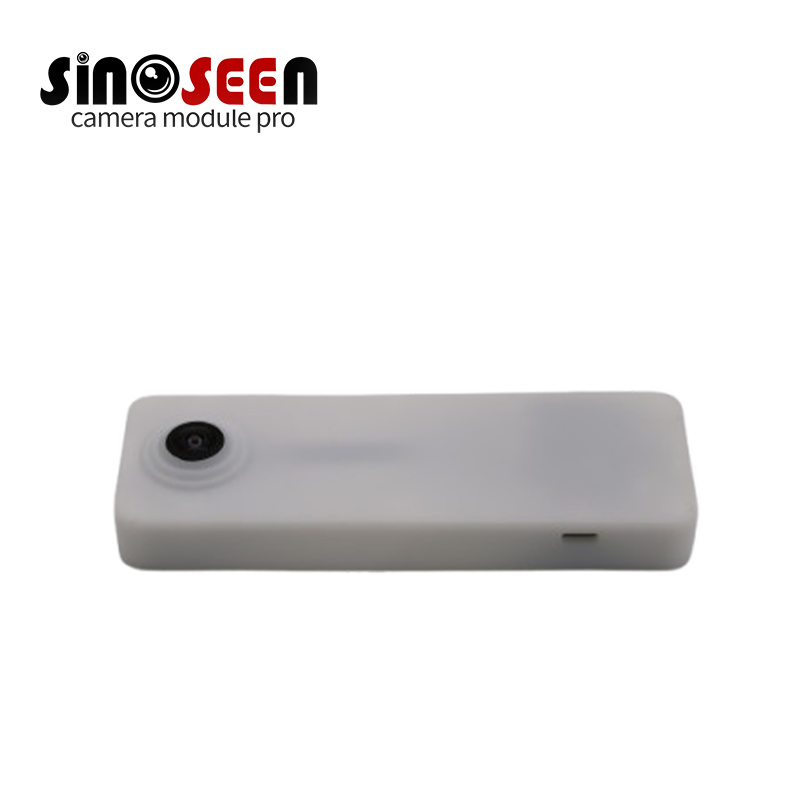

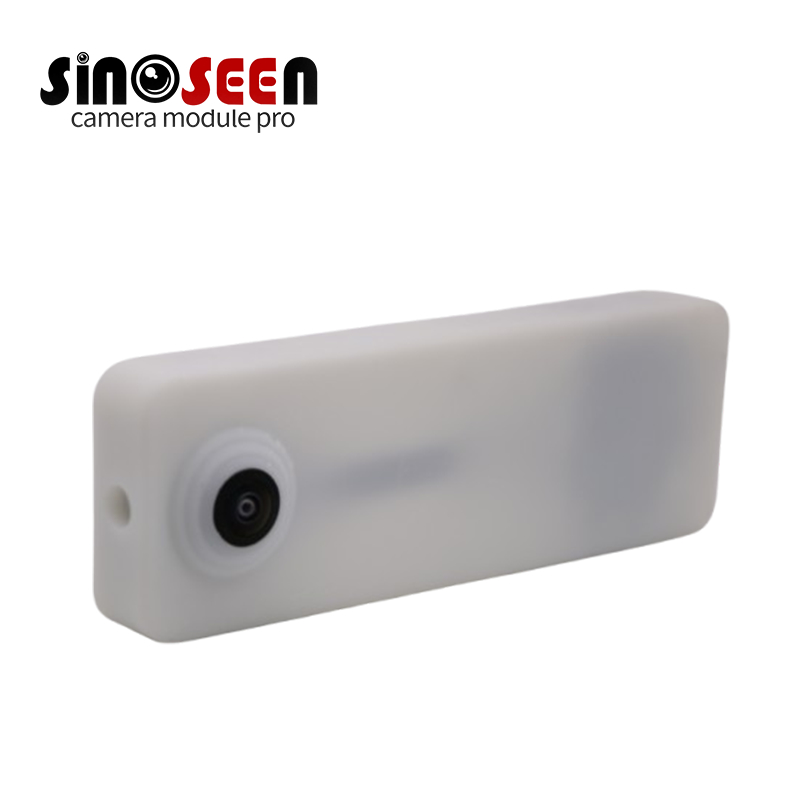

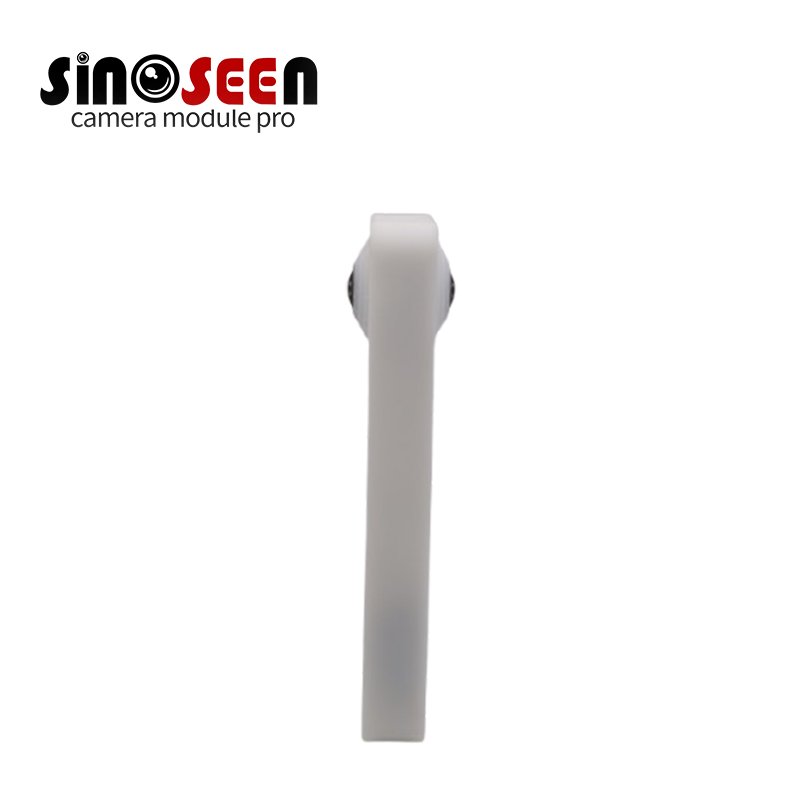

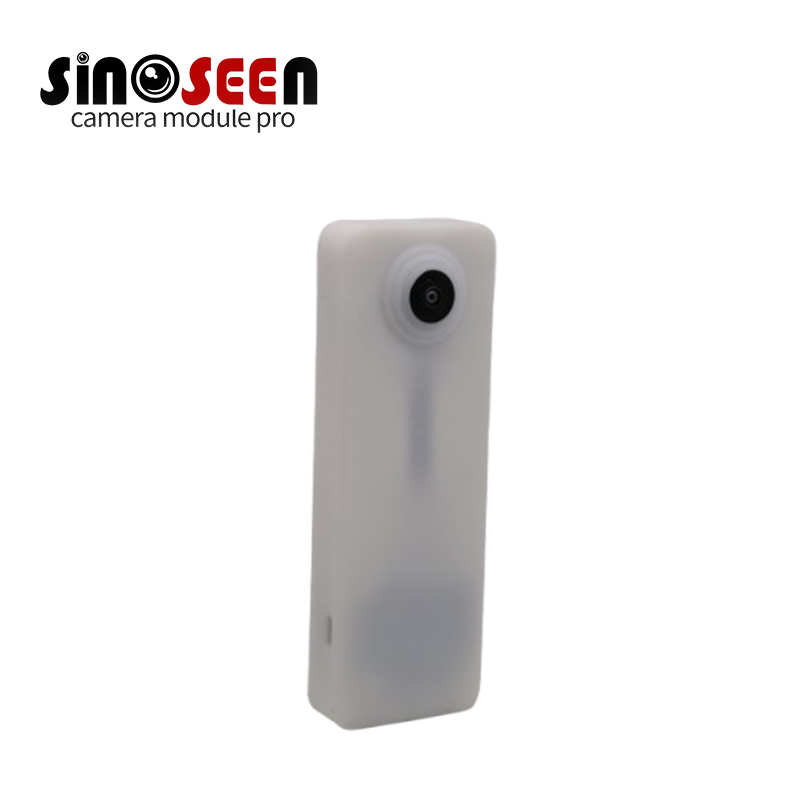

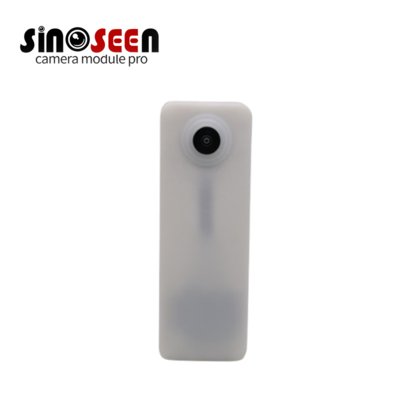

1536x1536 USB 360° Panoramic Camera with 210° FOV Lens
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS、ISO9001、CE |
| Model Number: | SNS-USB360-1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100USD or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type:: | OEM Camera Module | Resolution: | 1920×1080 |
|---|---|---|---|
| Dimensions: | (compatible With 32mmx32mm) | ||
| Highlight: | USB 360 degree panoramic camera,Type-C 360° video stitching camera,HD 1536x1536 VR surveillance camera |
||
Product Description
HD 1536x1536 USB 360° Panoramic Camera with Type-C Interface
Product Overview
The SNS-USB360-1.0 is a high-definition USB 360° panoramic camera featuring a 1/2.4-inch sensor with 1536x1536 resolution. It delivers seamless 360° video stitching at 3576x1536 @ 30FPS, supporting H264/H265 video formats through its Type-C interface. UVC compliant for driver-free operation via USB2.0 OTG.
Key Features
- HD 360° Imaging - 3576x1536 resolution at 30FPS for immersive panoramic video
- Plug-and-Play Operation - UVC compliant with USB2.0 OTG and Type-C connectivity
- Advanced Image Control - Auto exposure, white balance, gain control, and adjustable parameters
- Wide-Angle Lens - 210° field of view for complete panoramic capture
- Compact Design - Small 150×55mm form factor with low 1.5-2W power consumption
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | SNS-USB360-1.0 |
| Resolution | 1536(H) × 1536(V) |
| Video Output | H.264 / H.265 |
| Stitched Resolution | 3576 × 1536 @ 30fps |
| Sensor Size | 1/2.4" |
| Interface | Type-C |
| Protocol Support | USB 2.0 OTG, UVC |
| Image Controls | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
| Lens FOV | 210° |
| Power Requirements | DC 5V, 1.5W~2W |
| Operating Temperature | 0°C ~ 65°C |
| Dimensions | 150 × 55 mm |
| Cable Length | Standard 1m / 1.5m |
| Compatibility | Windows 10 |
Applications
Ideal for VR devices, surveillance systems, video conferencing solutions, and industrial imaging applications requiring panoramic capture.
