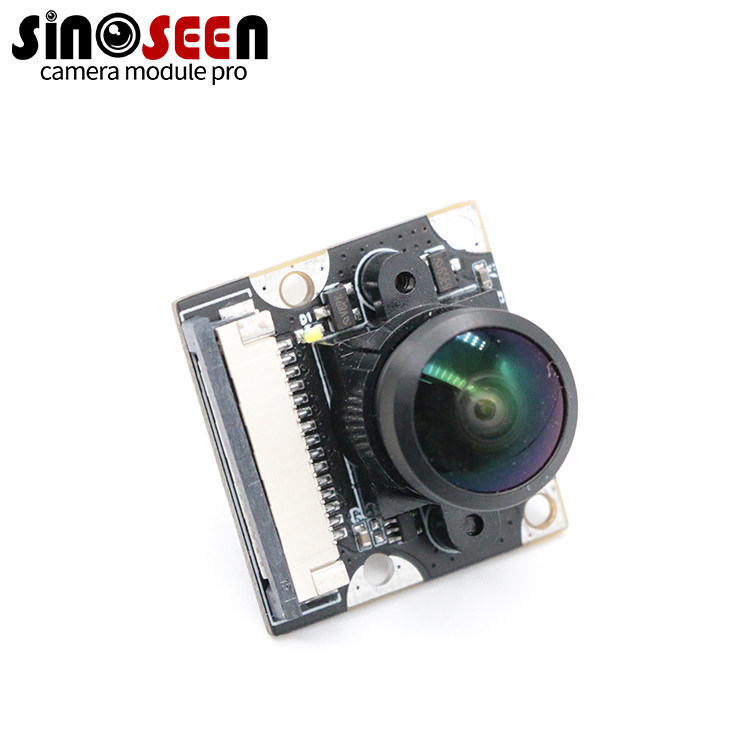

5MP OV5647 MIPI Camera Module for Raspberry Pi | Omnivision CMOS Sensor with High Sensitivity and Low Power
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-5MP-OV5647 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 10-100USD、negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 5MP Camera Module | Sensor: | 1/4"OV5647 |
|---|---|---|---|
| Resolution: | 5mp 2592*1944 | Dimensions: | (customizable) |
| Lens FOV: | 85°(optional) | Focus Type: | Fixed Focus |
| Interface: | Mipi | Feature: | Fixed Focus |
| Highlight: | 5MP Raspberry Pi camera module,OV5647 MIPI camera module,Omnivision CMOS sensor camera |
||
Product Description
5MP OV5647 MIPI Camera Module for Raspberry Pi | Omnivision CMOS Sensor with High Sensitivity and Low Power
Product Description
The OV5647 5MP MIPI camera module integrates Omnivision's high-quality CMOS sensor with OmniBSI™ technology, providing 2592 *1944 resolution and 15fps frame rate for crystal-clear imaging. It's widely adopted in Raspberry Pi development, AI training kits, and embedded camera systems.
Designed for DIY projects, robotics, and machine vision, this camera supports MIPI CSI interface and SCCB control, enabling smooth integration with single-board computers and IoT devices. The fixed-focus lens ensures consistent imaging quality, while its low power design makes it ideal for mobile and battery-powered systems.
Whether used in AI visual recognition, industrial monitoring, or STEM education, the OV5647 MIPI module delivers stable, high-resolution performance and plug-and-play usability.
Highlights
- 5MP CMOS sensor (OV5647) with OmniBSI technology
- Supports MIPI CSI-2 and SCCB interfaces
- Low power consumption and high image sensitivity
- Delivers 2592 *1944 resolution at 15fps
- Fixed focus lens, customizable FOV options
Specification
| Pixel Size | 1.4μm x 1.4μm |
|---|---|
| Effective Pixels | 2592*1944 |
| Image Sensor | 1/4" |
| Sensor Type | OV5647 |
| Lens View | FOV85°(Optional),F/N(Optional) |
| TV Distortion | <1% (Optional) |
| Temperature(Operation) | 0~60℃ |
| Temperature(Storage) | -20~70℃ |
| Dimension | Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
- Low cost: BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
- Big size: GC0308(1/6.5") GC0328(1/6.5") GC0403(1/3"-0.4MP) BF3A03(1/6.5")
- Global shutter: OV7251 (1/7.5",B/W)
- High frame rate: 200FPS SC031GS(1/6",B/W)
- Big size with high frame rate: OV7725(1/4",60FPS), OV7740(1/5",60FPS)
1MP
- Low cost: GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
- Small size for endoscope: OV9734 GC1009 HM1091
- Global shutter: OV9281(1/4",B/W) OV9782(1/4",color) AR0144(1/4",color) AR0135(1/3",color)
- Big size (30FPS): AR0130(1/3",B/W) OV10635(1/2.7",color,WDR,960P) H65(1/3",color,960P)
2MP
- Normal(10FPS): GC2145(1/5") BF2206(1/5")GC2335 OV2643 HM2056 BF3925 OV2755(1/5" HD)
- 1080P low cost: F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
- 1080P small size (30FPS): OV2732(1/4") OV2740(1/4") OV2722(1/6") SC2145(1/4") HM2160(1/6")
- 1080P@60FPS: OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
- 1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
- 1080P-WDR (30FPS): AR0230 AR0331(300W)
- 1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
- 1080P big size: IMX385
- 1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
- 500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
- FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3")
8MP
- 800W (15FPS): IMX219(1/4")S5K3H7 IMX179 C8390
- 8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8")
13MP-16MP
- IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
- IMX335 OV5648 IMX179 IMX307 PS5268
H264
- GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
Want to Know more details about this product
