GalaxyCore GC032A 0.3MP Fixed Focus DVP Camera Module with CMOS Image Sensor Product Category for ICs
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Sinoseen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|
|
Detail Information |
|||
| Image Sensor: | 1/10" | Effective Pixels: | 640*480 |
|---|---|---|---|
| Pixel Size: | 2.2μm X 2.2μm | Operating Temperature: | -20~70℃ |
| Storage Temperature: | 0~50℃ | Output Type: | CMOS |
| Lens View: | FOV80°(optional),F/N(optional) | TV Distortion: | <1% |
| Video Output: | Raw Bayer10bit/8bit | Operating Voltage: | AVDD:2.7~3.0V DOVDD:1.7~3.0V DVDD:1.7~1.9V |
| AEC Support: | Support | AEB Support: | Support |
| AGC Support: | Support | Dimensions: | Customizable |
| Manufacturer Part Number: | SNS-11189-V1.0 | ||
| Highlight: | GalaxyCore GC032A 0.3MP camera module,fixed focus DVP camera module,CMOS image sensor camera module |
||
Product Description

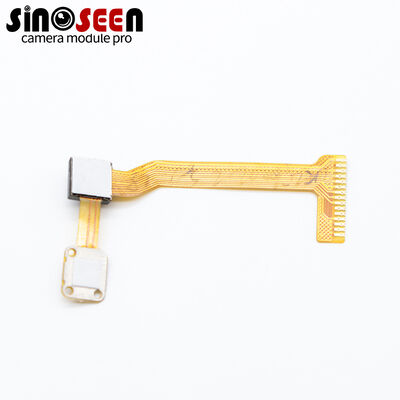

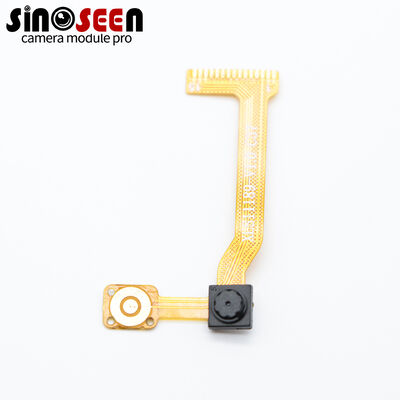

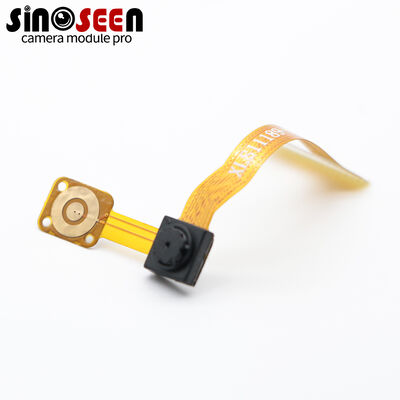

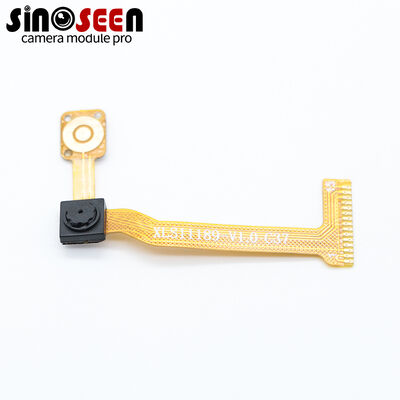

This 0.3MP fixed focus DVP camera module features the GalaxyCore GC032A CMOS image sensor with 640×480 resolution and 1/10-inch optical format. The 4-transistor pixel structure ensures high image quality with minimal noise variations.
The GC032A delivers superior image quality through its powerful on-chip design, including a 10-bit ADC and embedded image signal processor. The full integration of high-performance and low-power functions makes it ideal for mobile applications, reducing implementation complexity and extending battery life.
- On-chip ISP with smooth Auto Exposure (AE) and accurate Auto White Balance (AWB)
- Multiple data formats: Bayer RGB, RGB565, YCbCr 4:2:2
- Two-wire serial interface for host control
- DVP and SPI interface compatibility
- Low power consumption for extended battery life
| Module No | SNS-11189-V1.0 |
|---|---|
| Pixel Size | 2.2μm × 2.2μm |
| Effective Pixels | 640×480 |
| Video Output | Raw Bayer 10bit/8bit |
| Image Sensor | 1/10" |
| Sensor Type | GalaxyCore GC032A |
| Lens View | FOV80° (optional), F/N (optional) |
| TV Distortion | <1% |
| Operating Voltage | AVDD: 2.7~3.0V, DOVDD: 1.7~3.0V, DVDD: 1.7~1.9V |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | 0°C to 50°C |
| Dimensions | Customizable |
- Cellular Phone Cameras
- Notebook and Desktop PC Cameras
- PDAs and Mobile Devices
- Toys and Consumer Electronics
- Digital Still Cameras and Camcorders
- Video Telephony and Conferencing Equipment
- Security Systems
- Industrial and Environmental Systems
