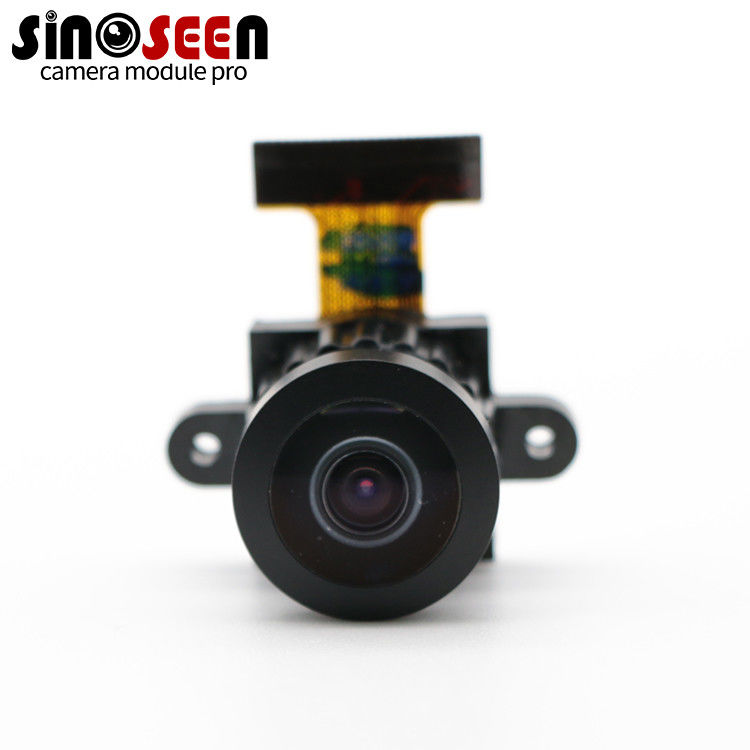

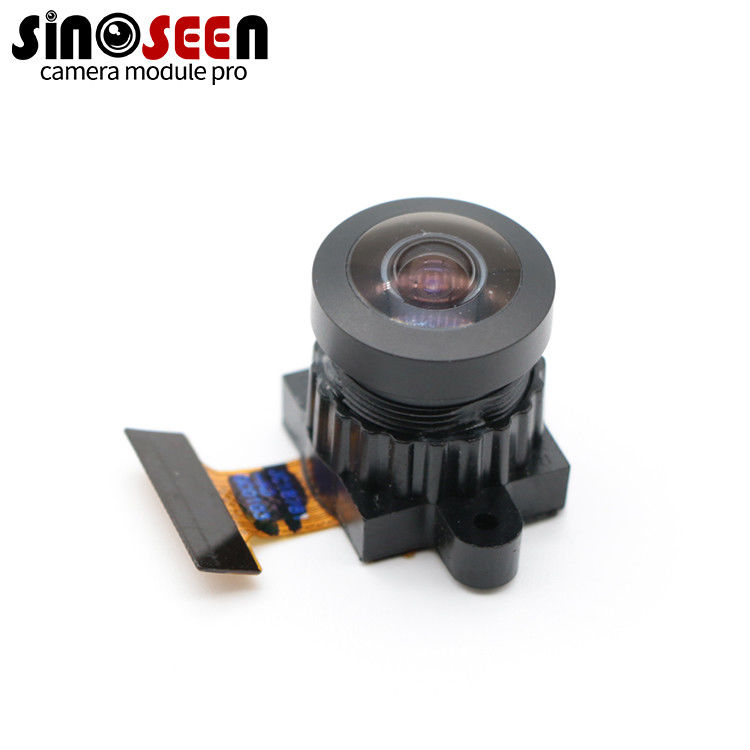

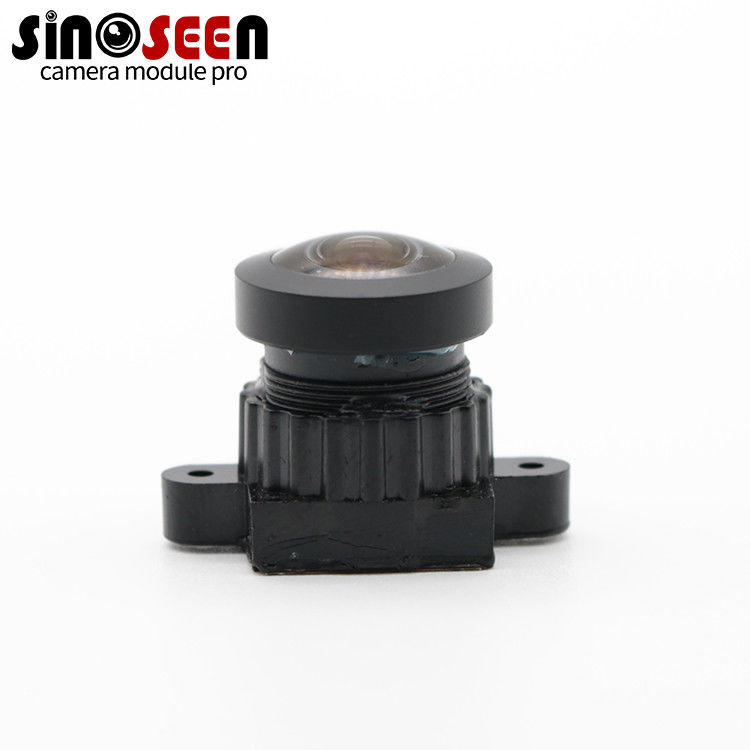

5MP DVP Flexible FPC Camera Module Edge Enhancement Auto Flicker Correction
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-5MP-4EC-D1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | FPC Camera Module | Sensor: | 1/4" Samsung S5K4ECGX |
---|---|---|---|
Resolution: | 5MP 2592(H) X 1944(V) | Dimensions: | Customizable |
Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
Interface: | DVP | Feature: | Low Power |
High Light: | 5MP DVP FPC Camera Module,S5K4ECGX FPC Camera Module,5MP DVP ir camera module |
Product Description
5MP DVP Flexible FPC Camera Module Edge Enhancement Auto Flicker Correction
5MP DVP Flexible FPC Camera Module With Samsung S5K4ECGX CMOS Sensor
Camera Module
This is a 5MP DVP camera module with S5K4ECGX sensor from Sumsang.The S5K4ECGX is a highly integrated 5Mp camera chip which includes a CMOS image sensor and an image signal processor with 8-bit ITU-R.656/601 parallel and MIPI CSI2 compliant serial interfaces. It is fabricated by SAMSUNG 0.09um CMOS image sensor process targeted for high-efficiency and low-power image sensors.The CMOS image sensor consists of a 2608x1960 active pixel sensor (APS) array in 1/4 inch optical format. It has an on-chip 10-bit ADC array, and correlated double sampling (CDS) which reduce fixed pattern noise (FPN)
significantly.
The image signal processor performs sophisticated image processing functions including color recovery and correction, false color suppression, lens shading correction, noise removal, edge enhancement, programmable gamma correction, image down scaling, auto defect correction, auto dark level compensation, auto flicker correction (50/60Hz), auto exposure (AE), auto white balance (AWB) and auto focus (AF). The auto functions are preformed by F/W on an embedded RISC processor. The host controller is able to access and control this devices via a general I2C bus.
Specification
Module No |
SNS-5MP-4EC-D1 |
Pixel Size |
1/4μm |
Effective Pixels |
2592×1944 |
Video output |
Raw Bayer10bit/8bit |
Active Array Size Video Rate |
15fps@full resolution;120fps@QVGA |
Image Sensor |
1/4" |
Sensor Type |
Samsung S5K4ECGX |
Lens view |
FOV90°(optional),F/N(optional) |
TV Distortion |
<1% |
AEC |
Support |
AEB |
Support |
AGC |
Support |
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
Operating temperature |
-30~70℃ |
Storage temperature |
0~50℃ |
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
