5MP Fixed Focus DVP IR Camera Module For Aerial Filming Solutions
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-5MP-HM5065-v1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | DVP Camera Module | Sensor: | 1/4" Himax HM5065 |
|---|---|---|---|
| Resolution: | 5MP 2592(H) X 1944(V) | Dimensions: | Customizable |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | DVP | Feature: | HD |
| High Light: | 5MP HM5065 IR Camera Module,DVP IR Camera Module,HM5065 thermal camera module |
||
Product Description

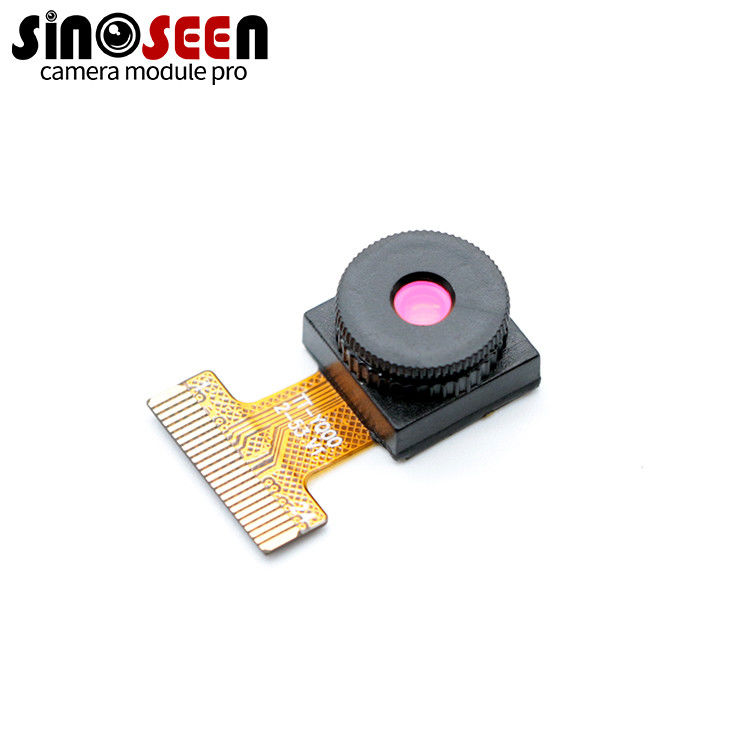

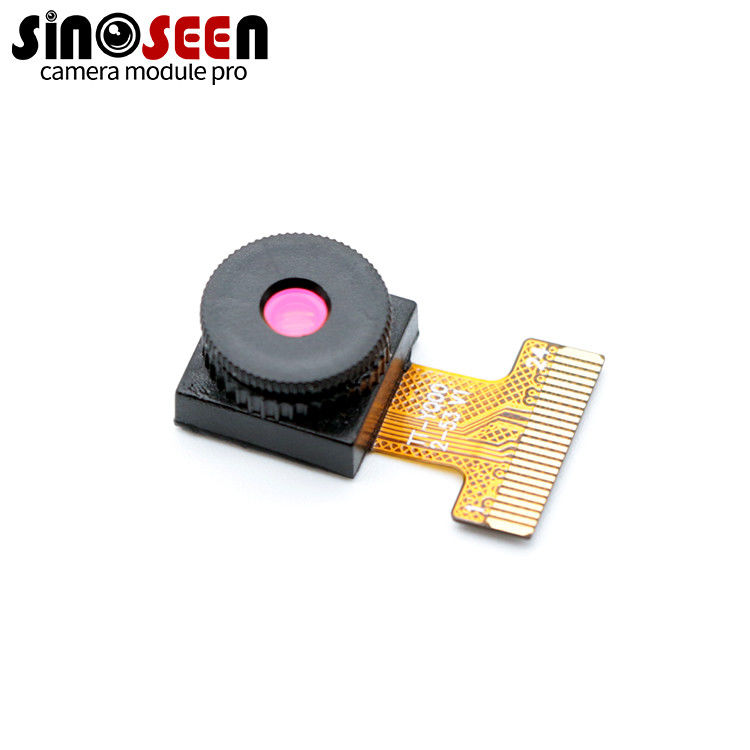

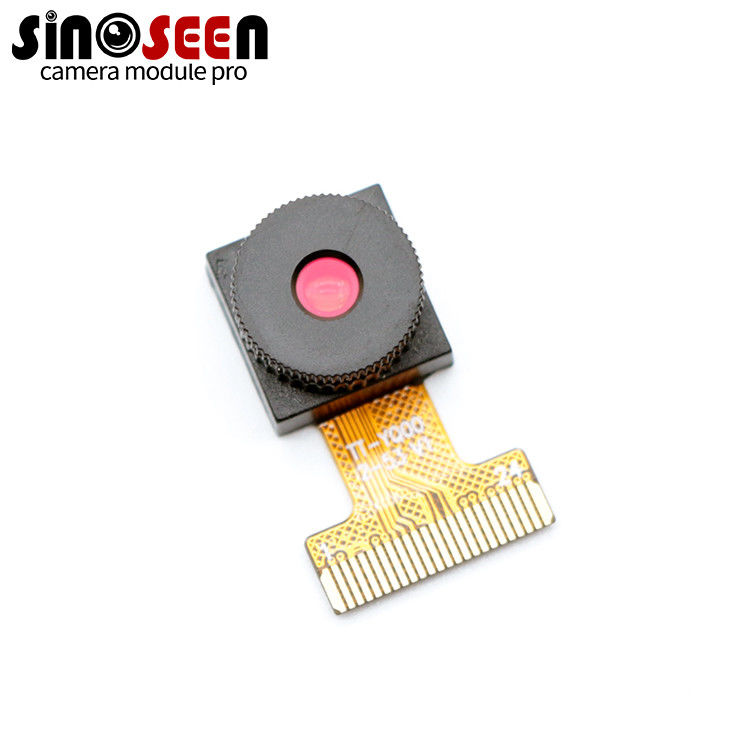

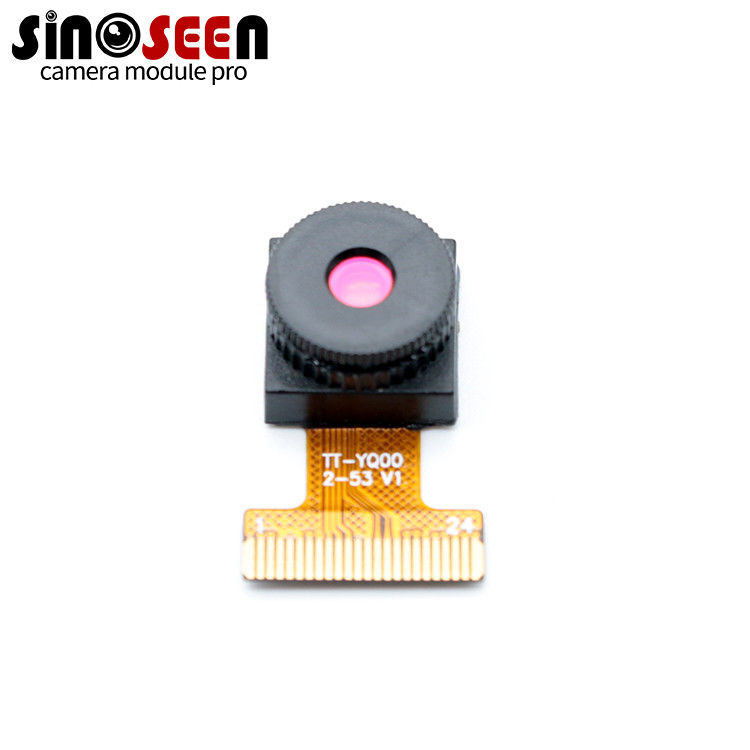

5MP Fixed Focus DVP IR Camera Module For Aerial Filming Solutions
5MP Fixed Focus IR Filter HD DVP Camera Module With Himax HM5065 1/4 Inch Sensor
This is a 5MP DVP camera module with HM5065 sensor from Himax, HM5065 is a 5.0 megapixel resolution (2592Hx1944V) with 16 border pixels in 1/4" optical format.It support up to 15 fps with 5MP(JPEG422), 30 fps with analog binning 2x2,60 fps with analog bining 4x4.
The HM5065 DVP camera module is currently with a fixed focus lens, with IR 650nm filter, you can change it to auto focus, and choose 850nm IR filter or 940nm IR filter according to your actual needs. The module dimensions can also be customized.
Specification:DVP camera module
|
Pixel Size |
1.4μm x 1.4μm |
|
Effective Pixels |
2592*1944 |
|
Image Sensor |
1/4" |
|
Sensor Type |
HM5065 |
|
Lens View |
FOV85°(Optional),F/N(Optional) |
|
TV Distortion |
<1% (Optional) |
|
Temperature(Operation) |
0~60℃ |
|
Temperature(Storage) |
-20~70℃ |
|
Dimension |
Customizable |
