Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
XLS11787-V1.0

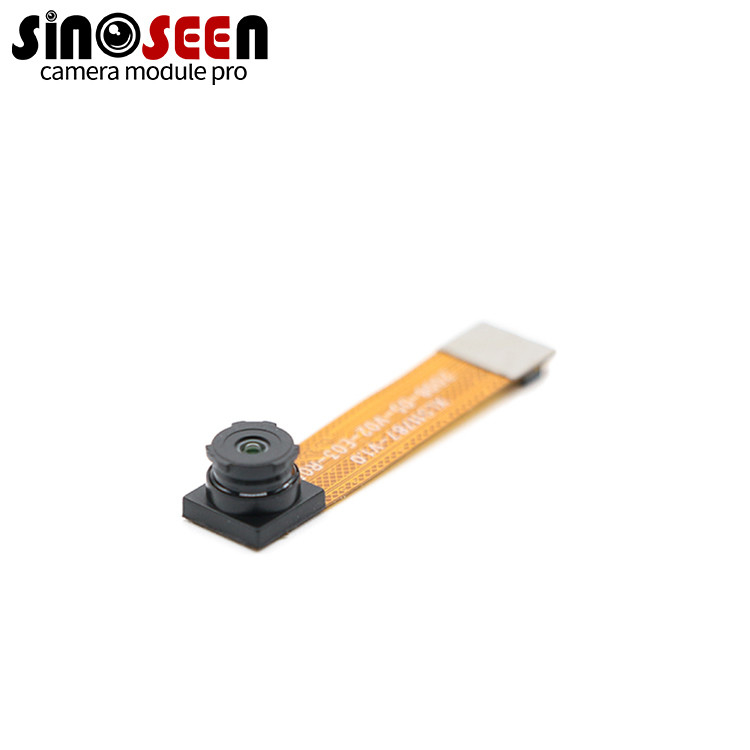

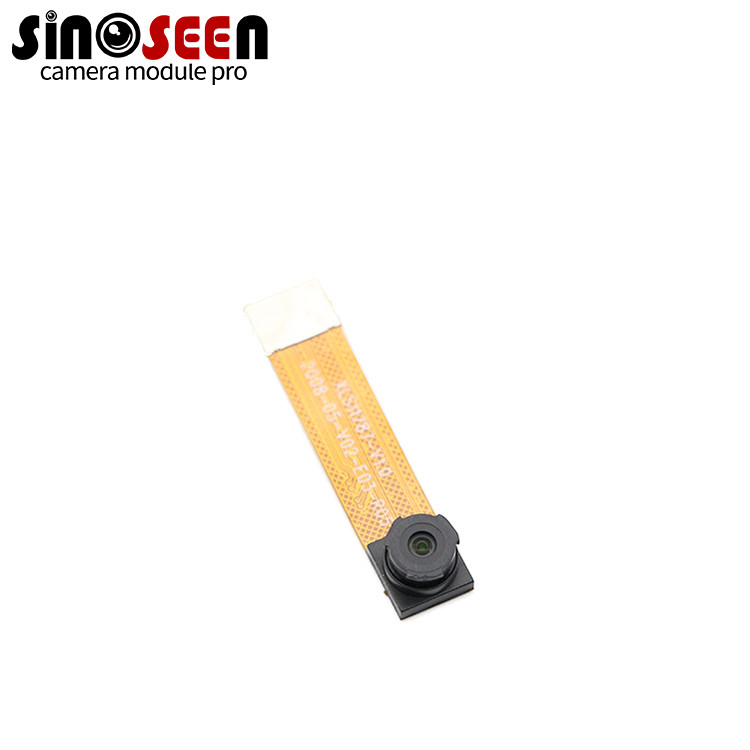

OV7251 sensor DVP Camera Module
This camera module features the OV7251 image sensor, which is a 0.3 megapixel (MP) sensor. The camera module uses a DVP (Digital Video Port) parallel port interface and provides a resolution of 640x480 pixels. It supports a high frame rate of 100 frames per second (fps) and features a fixed-focus lens. Prime lenses are suitable for applications where the camera focuses at a specific distance or the subject distance remains relatively constant. This camera module is suitable for a variety of applications requiring real-time video capture and analysis. It can be used in applications such as motion tracking, surveillance systems, robotics, and other scenarios that require lower resolutions and high frame rates.
Specification
|
Model No |
XLS11787-V1.0 |
|
Sensor |
1/7.5’’ Omnivision OV7251 |
|
Pixel |
0.3 Mega Pixel |
|
Most effective pixels |
640(H) x 480(V), 320(H) x 240(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
1968um(H) x 1488um (V) |
|
Compression format |
MJPG |
|
Resolution & Frame rate |
640x480@120fps; 320x240@200fps |
|
Shutter Type |
Global Shutter |
|
CFA (Chroma) |
Mono, Black/White |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
69.6dB |
|
Sensitivity |
10800mV / lux-sec |
|
Interface type |
DVP |
|
|
Brightness/Contrast/Color saturation/Hue/Definition//White balance |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/4 inch |
|
|
FOV: 60° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power consumption |
DC 5V, 120mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm (customizable with 32mm*32mm) |
|
Storage temperature |
-30°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
Send your inquiry directly to us
