Place of Origin:
China
Brand Name:
Sinoseen
Certification:
RoHS、ISO9001、CE
Model Number:
SNS21648-V1.0
| Attribute | Value |
|---|---|
| Type | dvp Camera Module |
| Sensor | GC2145 |
| Resolution | 1616×1232 |
| Dimensions | (compatible With 32mmx32mm) |
| High Light | dvp Camera Module, Machine Vision GC2145 Camera Module |

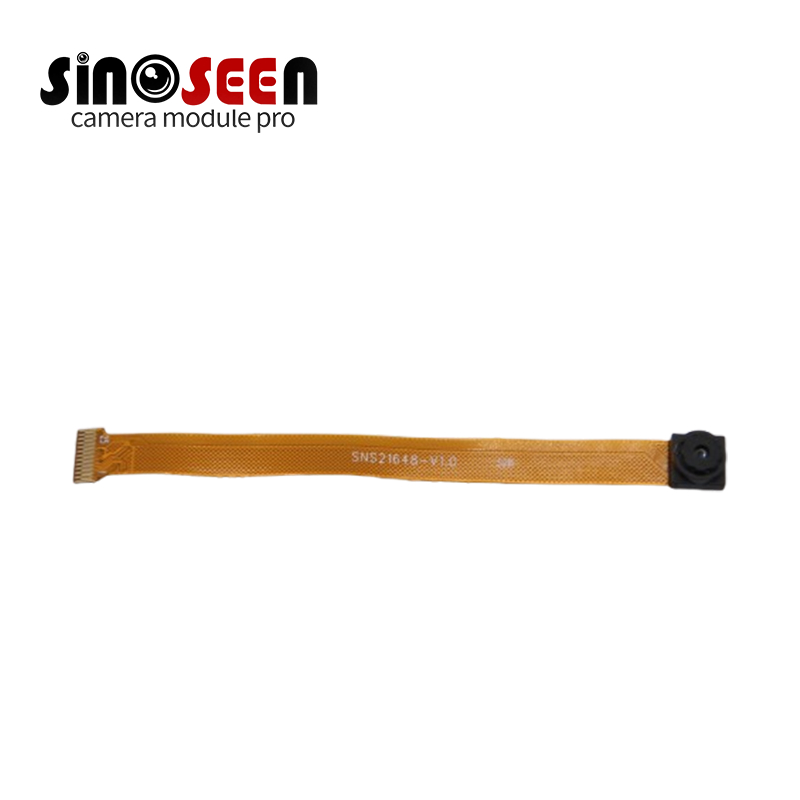

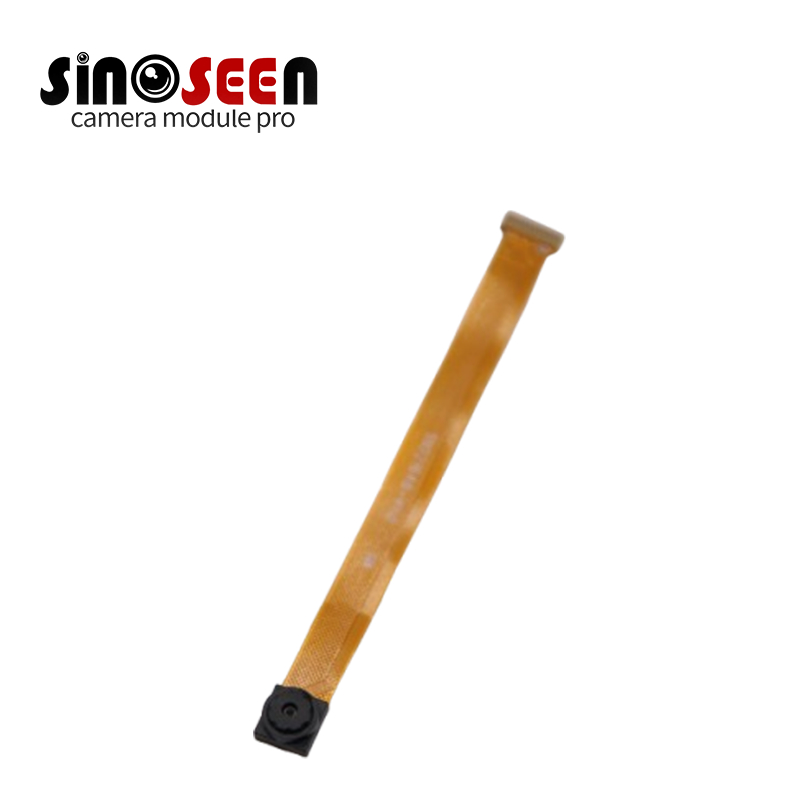

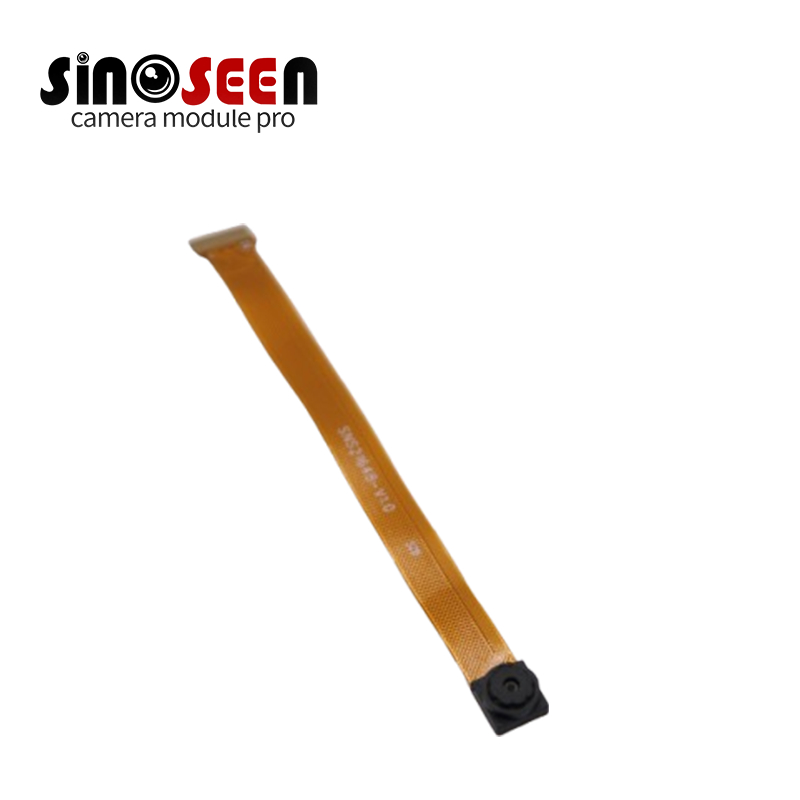

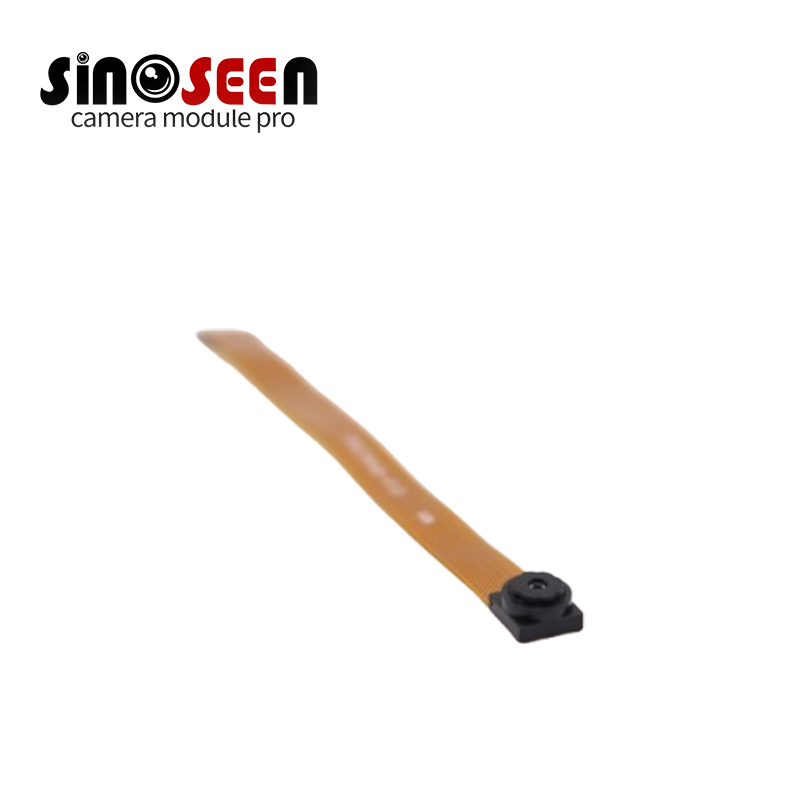

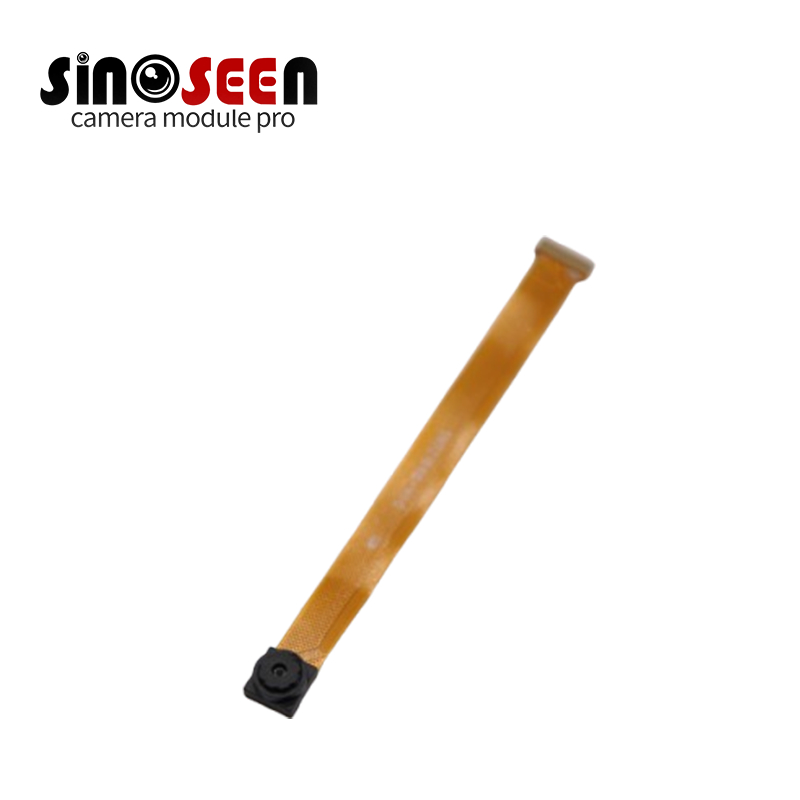

The SNS21648-V1.0 camera module, based on the GC2145 2MP CMOS sensor, delivers high-quality imaging with resolutions up to 1616 ×1232 and frame rates up to 30fps at lower resolutions.
Its on-chip ISP automatically adjusts exposure and white balance, denoises, and corrects color, producing smooth and accurate images even under varying lighting.
Compact in size (76.5×6.5mm) and low in power consumption (180mW), the module is well suited for applications including smart home devices, digital signage, barcode scanning, face recognition, video doorbells, UAVs, toy cameras, dashcams, action cameras, and high-speed document scanners. It supports multiple platforms including RK, Qualcomm, Allwinner, MTK, Spreadtrum, HiSilicon, and STM32.
| Parameter | Specification |
|---|---|
| Module Model | SNS21648-V1.0 |
| Sensor | GC2145 |
| Resolution | 1616×1232 (UXGA) |
| Max Frame Rate | 15fps @24MHz (UXGA), 30fps @24MHz (SVGA/other resolutions) |
| Pixel Size | 1.75µm × 1.75µm |
| Optical Format | 1/5 inch |
| Shutter | Electronic Rolling Shutter |
| Output Interface | DVP |
| Output Formats | Bayer RGB, RGB565, YCbCr4:2:2 |
| Power Consumption | 180mW (Active) |
| Supply Voltage | AVDD 2.7-3.0V, DVDD 1.7-1.9V, IOVDD 1.7-3.0V |
| SNR | 37.5 dB |
| Dynamic Range | 65 dB |
| Dark Current | 4.2 mV/s |
| Sensitivity | 1260 mV/Lux*s |
| Operating Temp | -20℃ ~ 70℃ |
| Stable Image Temp | 0℃ ~ 50℃ |
| CRA | 25° (non-linear) |
| Package | CSP / wafer |
| Module Size | 76.5 × 6.5 mm |
| FOV | 90° (optional) |
